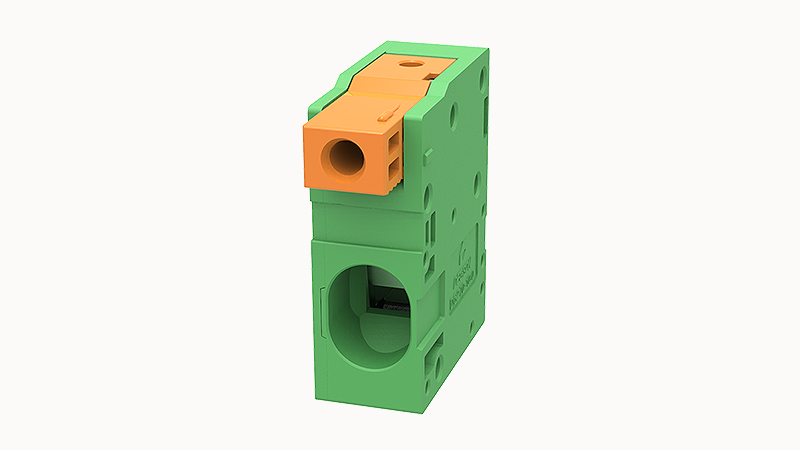

DEGSON DG270-10.0-01P

Rated current(III/3)

400V

Rated current(III/2)

400V

Rated current(II/2)

800V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Number of potentials

1

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

10mm

Rated current

76A

Rated voltage

400V

Flammability rating

UL94V-0
