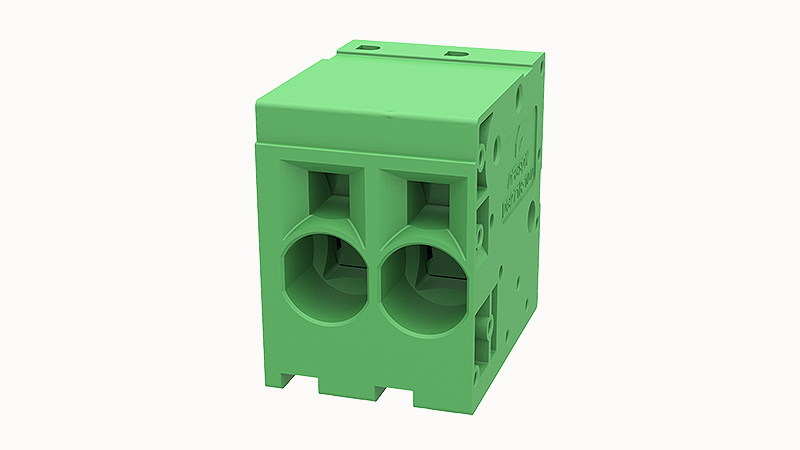

DEGSON DG271R-10.0-DA-02P

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

2

Pin arrangement

Double-row of misalignment

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(III/3)

8KV

Rated current(II/2)

1000V

Rated current(III/2)

1000V

Rated current(III/3)

1000V

Rated current (C)

70A

Rated current (D)

5A

Rated current (B)

70A

Rated voltage (D)

600V

Rated voltage (C)

600V

Rated voltage (B)

600V

Strip length

17mm

AWG

20~4AWG

Conductor cross section flexible

0.2~16mm²

Conductor cross section solid

0.2~16mm²

Number of rows

1

螺距

10mm

Rated current

76A

Connection method

Push-in spring connection

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
