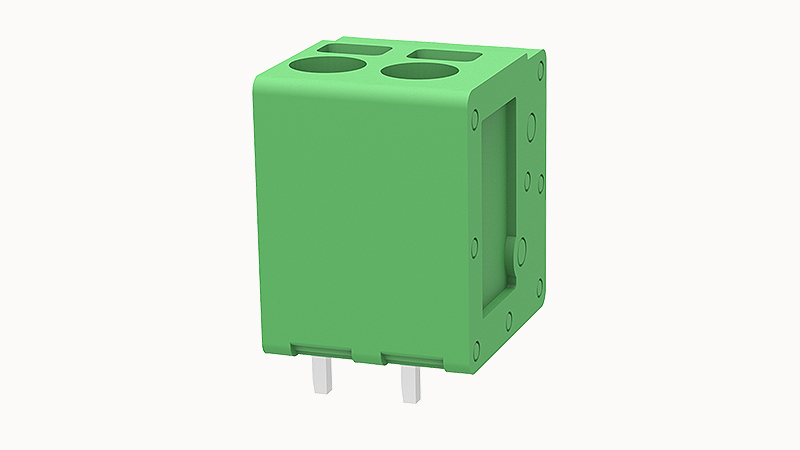

DEGSON DG271V-5.0-02P

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

24~12AWG

Strip length

10mm

Rated voltage (B)

300V

Rated current (B)

20A

Rated current(III/3)

250V

Rated current(III/2)

400V

Rated current(II/2)

630V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

5mm

Rated current

24A

Connection method

Push-in spring connection

Rated voltage

400V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
