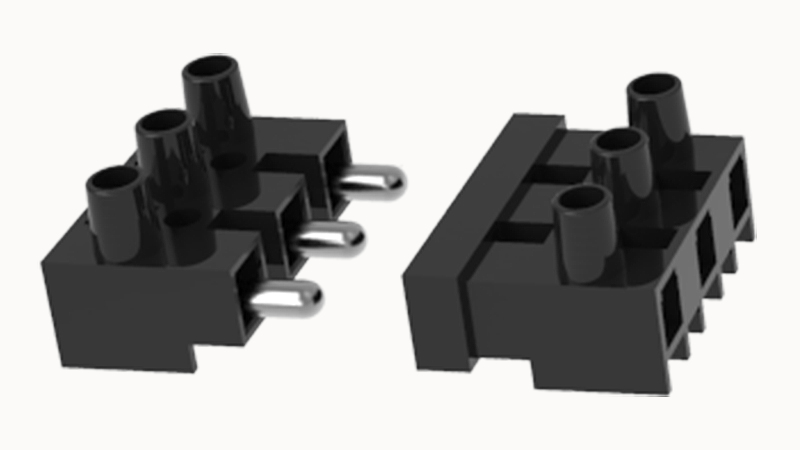

DEGSON DG280
- 收藏
- 对比
DG280
637-DG280
端子块 - 配件
--
大陆
立即发货
Feed through terminal blocks,Rated current:24A.Rated voltage （III/2）:450V,pitch:10.0mm,Color:black,Contact surface :Ni
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG280详情
DEGSON DG280重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.5~2.5mm²
Conductor cross section flexible
0.5~2.5mm²
AWG
22~12AWG
Torque
0.5N.m
Strip length
7mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
20A
Rated current (D)
5A
Rated current (C)
20A
Rated current(III/2)
450V
Rated power frequency voltage(1min)
2.5KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
3
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
Nickel plating
Insulation Materials
PA66
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~105℃
螺距
10mm
screw thread
M3
Connection method
Screw connection
Flammability rating
UL94V-2
