DEGSON DG285
- 收藏
- 对比
DG285
637-DG285
端子块 - 配件
--
大陆
立即发货

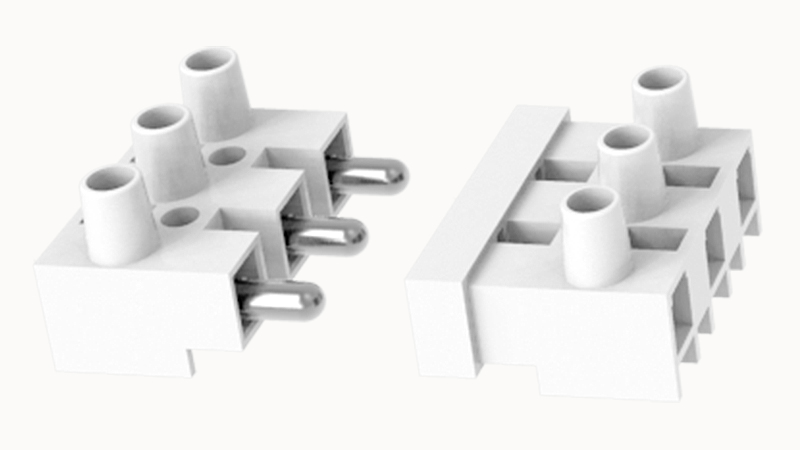

Feed through terminal blocks,Rated current:24A.Rated voltage （III/2）:450V,pitch:11.5mm,Color:White,Contact surface :Ni
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG285详情
DEGSON DG285重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Conductor cross section solid
1.0~2.5mm²
Conductor cross section flexible
1.0~2.5mm²
AWG
18~12AWG
Torque
0.5N.m
Strip length
6mm
Rated voltage (B)
300V
Rated current (B)
16A
Rated current(III/2)
450V
Rated power frequency voltage(1min)
2.5KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
3
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
Nickel plating
Insulation Materials
PA66
螺距
11.5mm
screw thread
M3
Connection method
Screw connection
Flammability rating
UL94V-2
