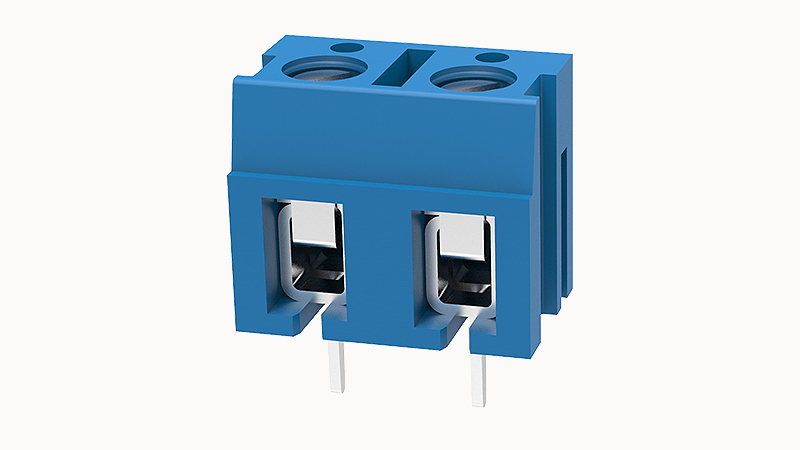

DEGSON DG305-7.5-02P

Ambient temperature (operation)

-30℃~120℃

Test Specification

UL1059/IEC60998

Insulating material group

Ⅲa

Insulation Materials

PBT

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

2

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

2.5KV

Rated current(III/2)

450V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

6mm

AWG

22~14AWG

Conductor cross section flexible

1.0~2.5mm²

Conductor cross section solid

1.0~2.5mm²

Number of rows

1

螺距

7.5mm

Rated current

20A

screw thread

M2.5

Connection method

Screw connection with wire protection

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
