DEGSON DG331-5.0-02P
- 收藏
- 对比
DG331-5.0-02P
637-DG331-5.0-02P
端子块 - 配件
--
大陆
立即发货

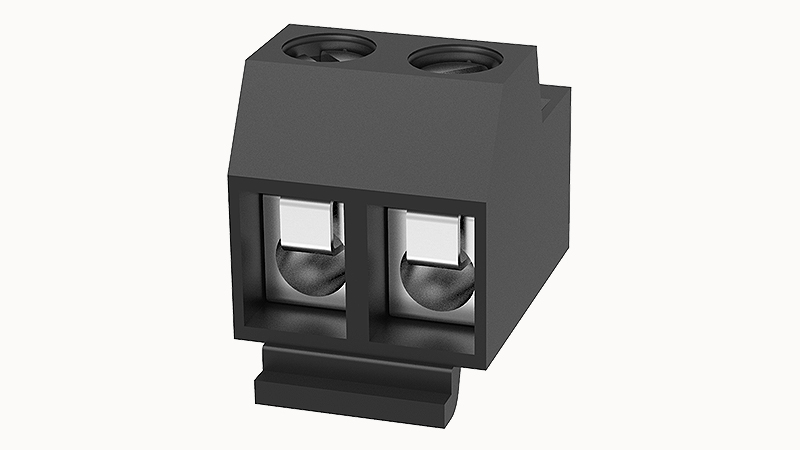

Pluggable terminal blocks,Rated current:12A,Rated voltage（III/2）250V,Cross section:2.5mm²,pitch:5.0mm,connector method: screw connector with wire protection,Color:green,Contact surface:Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG331-5.0-02P详情
DEGSON DG331-5.0-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
1.0~2.5mm²
Conductor cross section flexible
1.0~2.5mm²
AWG
28~14AWG
Torque
0.5N.m
Strip length
6mm
Rated voltage (B)
300V
Rated current (B)
10A
Rated current(III/2)
250V
Rated surge voltage(III/2)
2KV
Connection direction
0°
Screwdriver
Slotted screwdriver
Number of potentials
2
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
5mm
Rated current
12A
screw thread
M3
Connection method
Screw connection with wire protection
Rated voltage
250V
Flammability rating
UL94V-0
