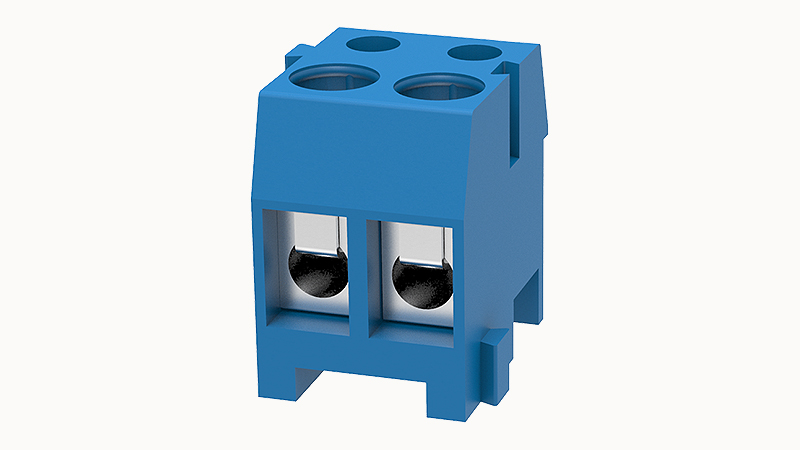

DEGSON DG333K-3.5-02P
- 收藏
- 对比
DG333K-3.5-02P
637-DG333K-3.5-02P
端子块 - 配件
--
大陆
立即发货
Pluggable terminal blocks,Rated current:10A,Rated voltage（III/2）250V,Cross section:1.0mm²,pitch:3.5mm,connector method: screw connector with wire protection,蓝色:green,Contact surface:Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG333K-3.5-02P详情
DEGSON DG333K-3.5-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.5~1.0mm²
Conductor cross section flexible
0.5~1.0mm²
AWG
28~16AWG
Torque
0.2N.m
Strip length
5mm
Rated voltage (B)
300V
Rated voltage (D)
300V
Rated current (B)
8A
Rated current (D)
8A
Rated current(III/2)
250V
Rated surge voltage(III/2)
2KV
Connection direction
0°
Screwdriver
Slotted screwdriver
Number of potentials
2
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
Nickel plating
Contact zone metal surface
Nickel plating
Insulation Materials
PBT
Insulating material group
Ⅲa
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-30℃~120℃
Number of rows
1
螺距
3.5mm
Rated current
10A
screw thread
M2
Connection method
Screw connection with wire protection
Rated voltage
250V
Flammability rating
UL94V-0
