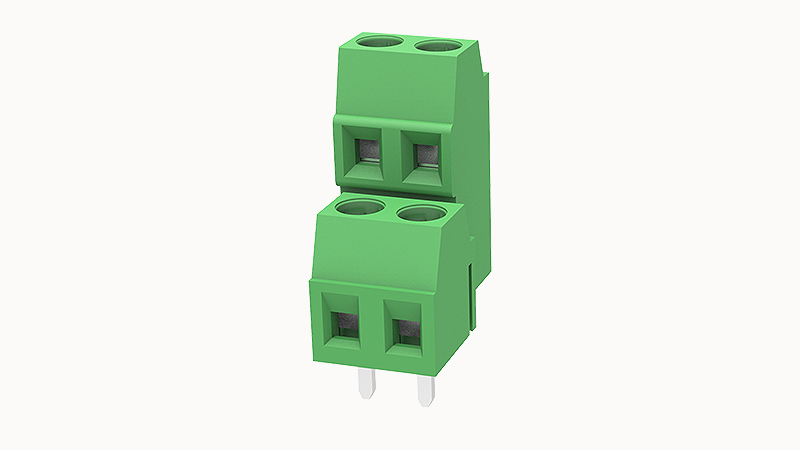

DEGSON DG381A-3.5-04P

Conductor cross section solid

0.2~1.0mm²

Conductor cross section flexible

0.2~1.0mm²

AWG

26~16AWG

Torque

0.2N.m

Strip length

6mm

Rated voltage (B)

300V

Rated current (B)

12A

Rated current(III/2)

130V

Rated power frequency voltage(1min)

1.25KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

4

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

Number of rows

2

螺距

3.5mm

Rated current

10A

screw thread

M2

Connection method

Screw connection

Rated voltage

130V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
