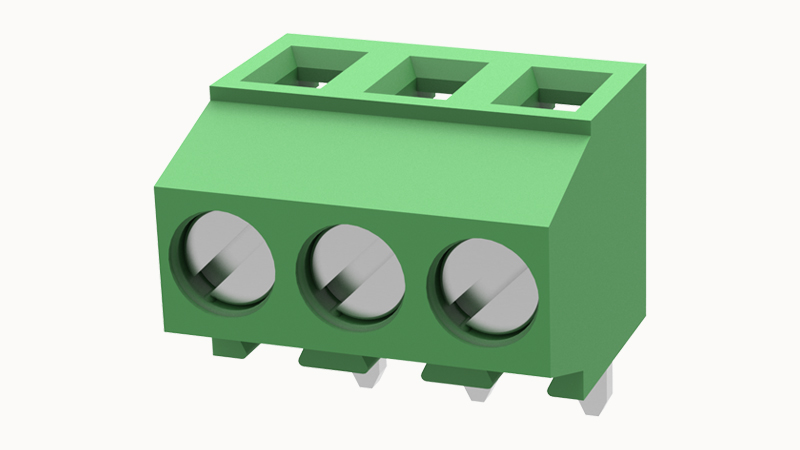

DEGSON DG381R-3.5-03P

Insulation Materials

PA66

Shell color

green

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Ambient temperature (storage/transportation)

-40℃~70℃

Packing unit

3200

Products weight (without packaging)

1.772

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

3

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated power frequency voltage(1min)

1.25KV

Rated voltage(III/2)

130V

Rated current (B)

10A

Rated voltage (B)

300V

Strip length

6mm

Torque

0.2N.m

AWG

26~16AWG

Conductor cross section flexible

0.5~1.0mm²

Conductor cross section solid

0.5~1.0mm²

Type of packaging

box-packed

Number of rows

1

螺距

3.5mm

Rated current

10A

screw thread

M2

Connection method

Screw connection

Rated voltage

130V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
