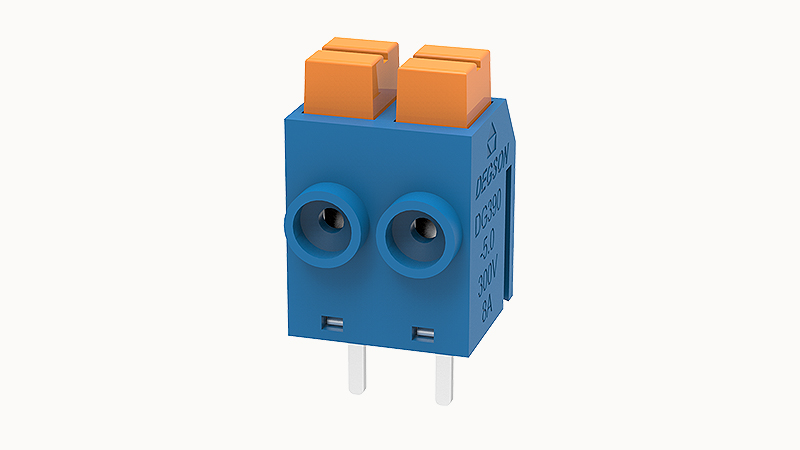

DEGSON DG390-5.0-02P

Conductor cross section solid

0.5~1.0mm²

Conductor cross section flexible

0.5~1.0mm²

AWG

22~18AWG

Strip length

9mm

Rated voltage (B)

300V

Rated current (C)

8A

Rated current(III/2)

250V

Rated surge voltage(III/2)

2KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PBT

Insulating material group

Ⅲa

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

5mm

Rated current

13.5A

Connection method

Push-in spring connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
