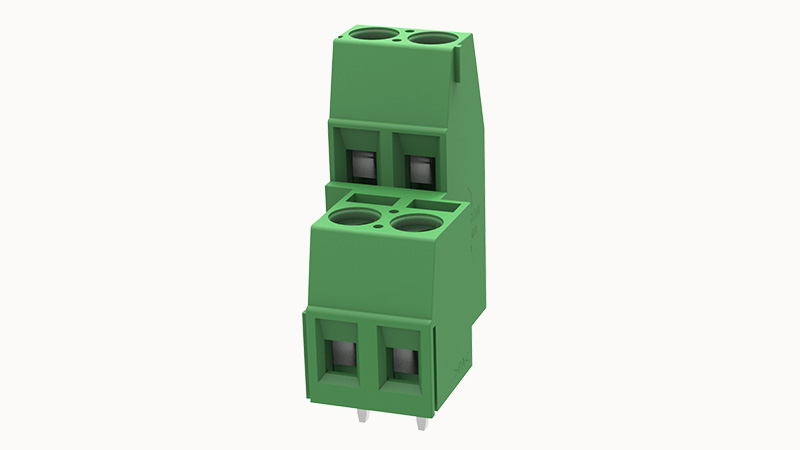

DEGSON DG500A-5.0-100A-04P

Conductor cross section solid

1.0~2.5mm²

Conductor cross section flexible

1.0~2.5mm²

AWG

28~12AWG

Torque

0.5N.m

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

20A

Rated current (D)

10A

Rated current(III/2)

250V

Rated power frequency voltage(1min)

2KV

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

4

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃

Number of rows

2

螺距

5mm

Rated current

18A

screw thread

M3

Connection method

Screw connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
