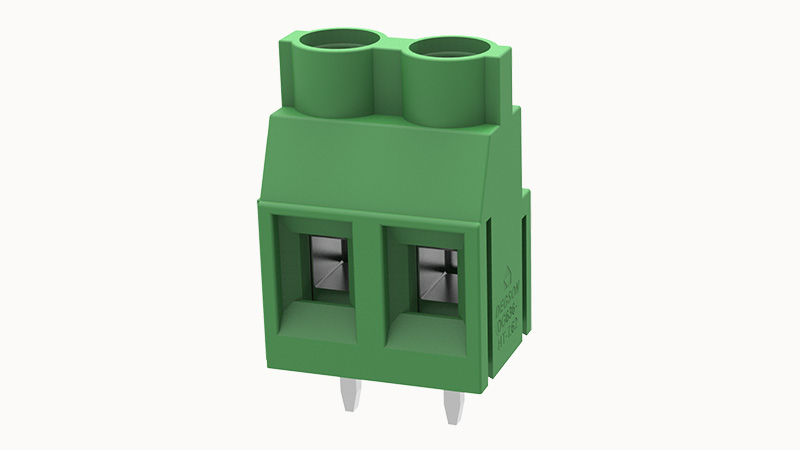

DEGSON DG636-HT-7.62-02P

Conductor cross section solid

0.2~6mm²

Conductor cross section flexible

0.2~4.0mm²

AWG

26~10AWG

Torque

1.2N.m

Strip length

8mm

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated voltage (D)

300V

Rated current (B)

30A

Rated current (D)

10A

Rated current (C)

30A

Rated current(III/3)

500V

Rated current(III/2)

630V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Phillips screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.62mm

Rated current

32A

screw thread

M3.5

Connection method

Screw connection

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
