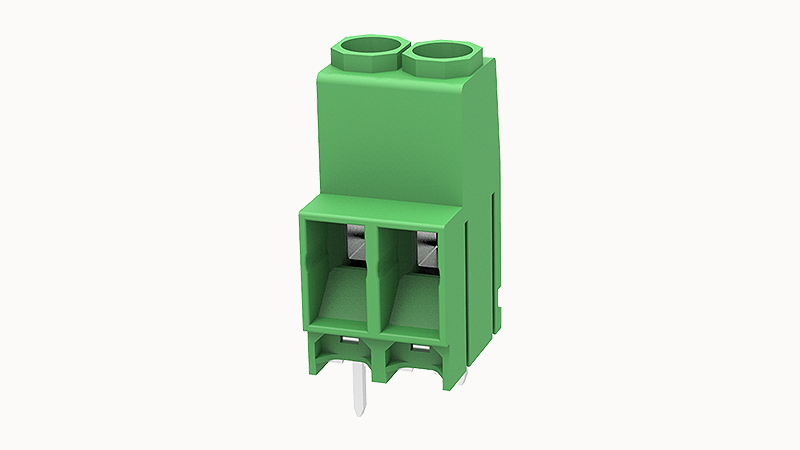

DEGSON DG637-6.35-02P
- 收藏
- 对比
DG637-6.35-02P
637-DG637-6.35-02P
端子块 - 配件
--
大陆
立即发货
PCB terminal blocks,Rated current: 32A,Rated voltage （III/2）1000V,Cross section:0.2-4.0mm²,pitch:6.35mm,connector method:Screw connector with tension sleeve,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG637-6.35-02P详情
DEGSON DG637-6.35-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~6mm²
Conductor cross section flexible
0.2~4.0mm²
AWG
28~10AWG
Torque
0.5N.m
Strip length
8mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
30A
Rated current (D)
5A
Rated current (C)
30A
Rated current(III/3)
500V
Rated current(III/2)
630V
Rated current(II/2)
1000V
Rated surge voltage(III/3)
8KV
Rated surge voltage(III/2)
8KV
Rated surge voltage(II/2)
8KV
Connection direction
0°
Type of installation
PCB welding
Screwdriver
Slotted screwdriver
Number of potentials
2
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC60947/UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
6.35mm
Rated current
32A
screw thread
M3
Connection method
Screw connection
Rated voltage
630V
过程
Wave soldering/manual soldering
Flammability rating
UL94V-0
