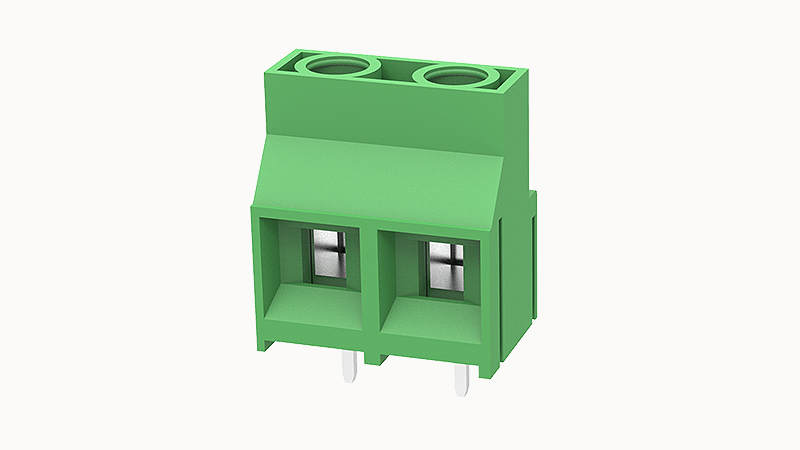

DEGSON DG950-9.5-02P
- 收藏
- 对比
DG950-9.5-02P
637-DG950-9.5-02P
端子块 - 配件
--
大陆
立即发货
PCB terminal blocks,Rated current: 26A,Rated voltage （III/2）750V,Cross section:1.5-4.0mm²,pitch:9.5mm,connector method:Screw connector with tension sleeve,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG950-9.5-02P详情
DEGSON DG950-9.5-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
1.5~4.0mm²
Conductor cross section flexible
1.5~4.0mm²
AWG
26~10AWG
Torque
0.5N.m
Strip length
8mm
Rated voltage (B)
300V
Rated voltage (C)
300V
Rated voltage (D)
300V
Rated current (B)
30A
Rated current (D)
10A
Rated current (C)
30A
Rated current(III/2)
750V
Rated power frequency voltage(1min)
3KV
Connection direction
0°
Type of installation
PCB welding
Pin arrangement
Single row in a straight line
Screwdriver
Slotted screwdriver
Number of potentials
2
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
9.5mm
Rated current
26A
screw thread
M3
Connection method
Screw connection
Rated voltage
750V
过程
Wave soldering/manual soldering
Flammability rating
UL94V-0
