DEGSON DGH10
- 收藏
- 对比
DGH10
637-DGH10
端子块 - 配件
--
大陆
立即发货

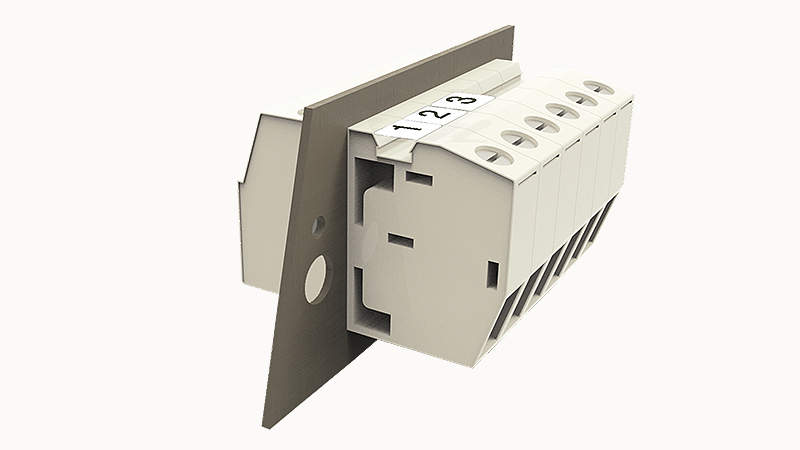

Through-wall terminal blocks,Rated current:76A.Rated voltage （III/3）:500V,Width:10.1mm,Color:gray,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGH10详情
DEGSON DGH10重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.5~16mm²
Conductor cross section flexible
0.5~16mm²
AWG
24~6AWG
Torque
1.2N.m
Strip length
10mm
Rated voltage (B)
300V
Rated voltage (D)
300V
Rated current (B)
65A
Rated current (D)
10A
Rated current(III/3)
500V
Rated surge voltage(III/3)
8KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC60947/UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
10.1mm
screw thread
M4
Connection method
Screw connection
Flammability rating
UL94V-0
