DEGSON DGH25
- 收藏
- 对比
DGH25
637-DGH25
端子块 - 配件
--
大陆
立即发货

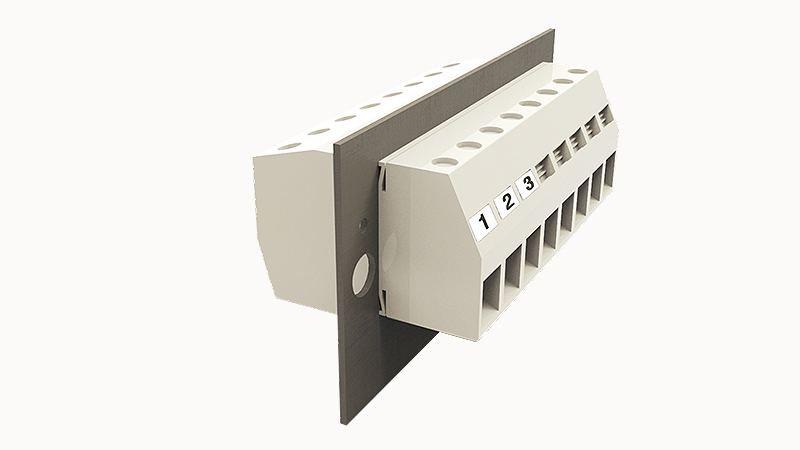

Through-wall terminal blocks,Rated current:101A.Rated voltage （III/3）:500V,Width:15.0mm,Color:gray,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGH25详情
DEGSON DGH25重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
6~35mm²
Conductor cross section flexible
10~25mm²
AWG
8~2AWG
Torque
4N.m
Strip length
19mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
115A
Rated current (D)
5A
Rated current (C)
115A
Rated current(III/3)
500V
Rated surge voltage(III/3)
6KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC60947/UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
15.1mm
screw thread
M5
Connection method
Screw connection
Flammability rating
UL94V-0
