DEGSON DGH4
- 收藏
- 对比
DGH4
637-DGH4
端子块 - 配件
--
大陆
立即发货

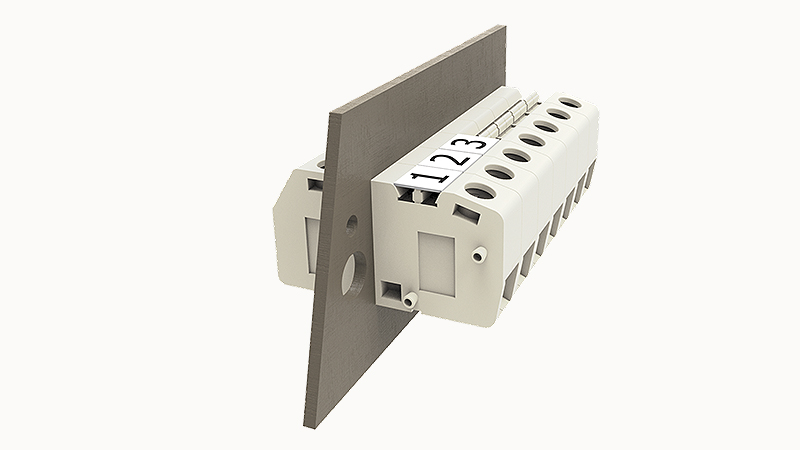

Through-wall terminal blocks,Rated current:41A.Rated voltage （III/2）:400V,Width:8.1mm,Color:gray,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGH4详情
DEGSON DGH4重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~6mm²
Conductor cross section flexible
0.2~6.0mm²
AWG
30~10AWG
Torque
0.5N.m
Strip length
9mm
Rated voltage (B)
300V
Rated voltage (C)
300V
Rated voltage (D)
300V
Rated current (B)
30A
Rated current (D)
10A
Rated current (C)
30A
Rated current(III/2)
400V
Rated surge voltage(III/2)
2.5KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC60947/UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
8.1mm
screw thread
M3
Connection method
Screw connection
Flammability rating
UL94V-0
