DEGSON DGH50
- 收藏
- 对比
DGH50
637-DGH50
端子块 - 配件
--
大陆
立即发货

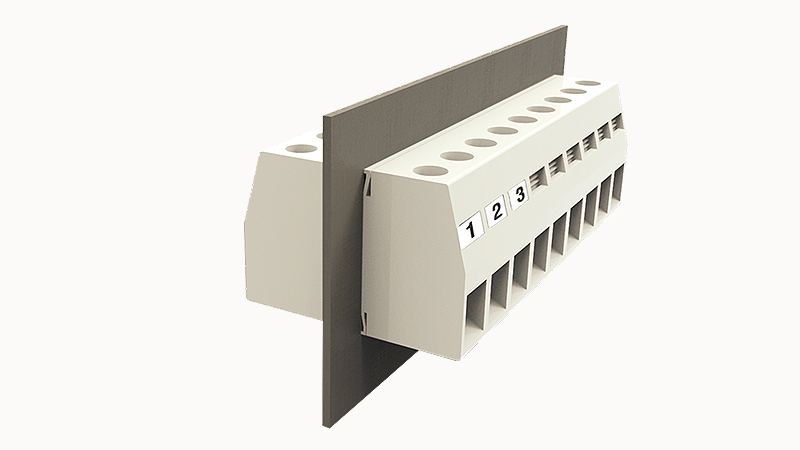

Through-wall terminal blocks,Rated current:150A.Rated voltage （III/2）:1000V,Width:18.8mm,Color:gray,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGH50详情
DEGSON DGH50重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
16~50mm²
Conductor cross section flexible
16~50mm²
AWG
6~2/0AWG
Strip length
24mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
170A
Rated current (D)
5A
Rated current (C)
170A
Rated current(III/3)
690V
Rated current(III/2)
1000V
Rated current(II/2)
1000V
Rated surge voltage(III/3)
8KV
Rated surge voltage(III/2)
8KV
Rated surge voltage(II/2)
8KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC60947/UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
18.8mm
screw thread
M6
Connection method
Screw connection
Flammability rating
UL94V-0
