DEGSON DGP4
- 收藏
- 对比
DGP4
637-DGP4
端子块 - 配件
--
大陆
立即发货

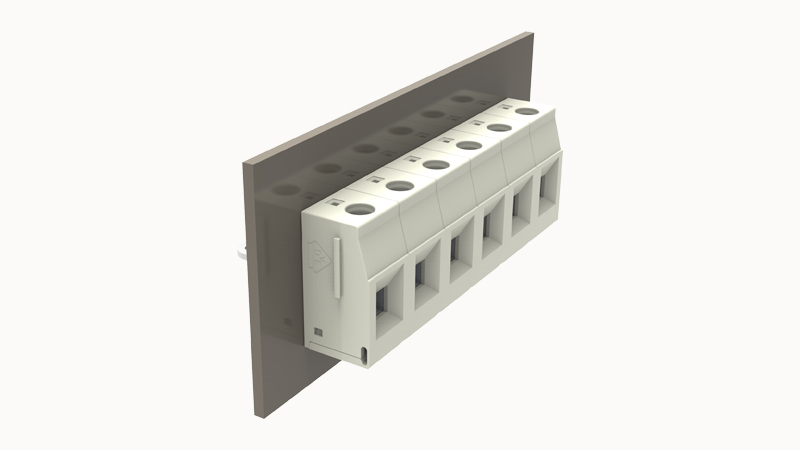

Through-wall terminal blocks，Rated current：32A，Rated voltage（III/3）：500V，width：10.0mm，Color：glay，Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGP4详情
DEGSON DGP4重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Type of packaging
bag packaging
Conductor cross section solid
0.2~6mm²
Conductor cross section flexible
0.2~4.0mm²
AWG
28~10AWG
Torque
0.8N.m
Strip length
8mm
Rated voltage (B)
300V
Rated voltage (C)
150V
Rated voltage (D)
300V
Rated current (B)
30A
Rated current (D)
10A
Rated current (C)
30A
Rated current(III/3)
500V
Rated current(III/2)
800V
Rated current(II/2)
800V
Rated surge voltage(III/3)
4KV
Rated surge voltage(III/2)
4KV
Rated surge voltage(II/2)
4KV
Connection direction
0°
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Insulation Materials
PA66
Shell color
Gray
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
10mm
Rated current
32A
screw thread
M3
Connection method
Screw connection
Rated voltage
500V
Flammability rating
UL94V-0
