DEGSON DGV10
- 收藏
- 对比
DGV10
637-DGV10
端子块 - 配件
--
大陆
立即发货

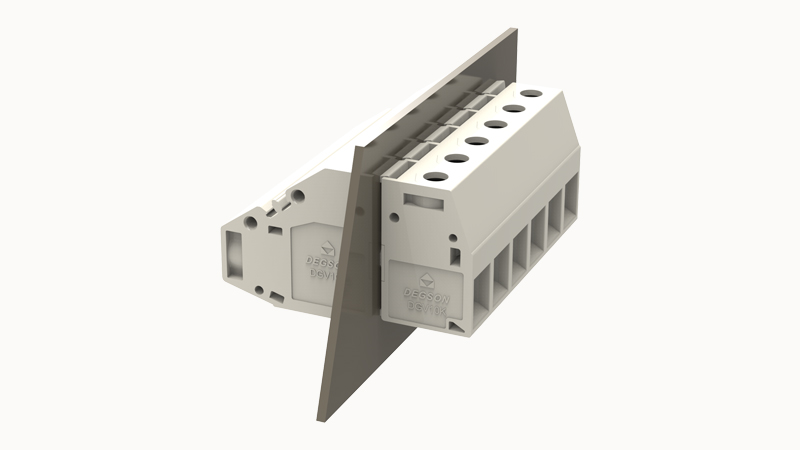

Through-wall terminal blocks，Rated current：57A，Rated voltage（III/3）：400V，width：10.1mm，Color：glay，Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGV10详情
DEGSON DGV10重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.5~16mm²
Conductor cross section flexible
0.5~10mm²
AWG
24~6AWG
Torque
1.2N.m
Strip length
10mm
Rated voltage (B)
300V
Rated voltage (C)
150V
Rated voltage (D)
300V
Rated current (B)
65A
Rated current (D)
10A
Rated current (C)
65A
Rated current(III/3)
400V
Rated surge voltage(III/3)
6KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
screw thread
M4
Connection method
Screw connection
Flammability rating
UL94V-0
