DEGSON DGV4
- 收藏
- 对比
DGV4
637-DGV4
端子块 - 配件
--
大陆
立即发货

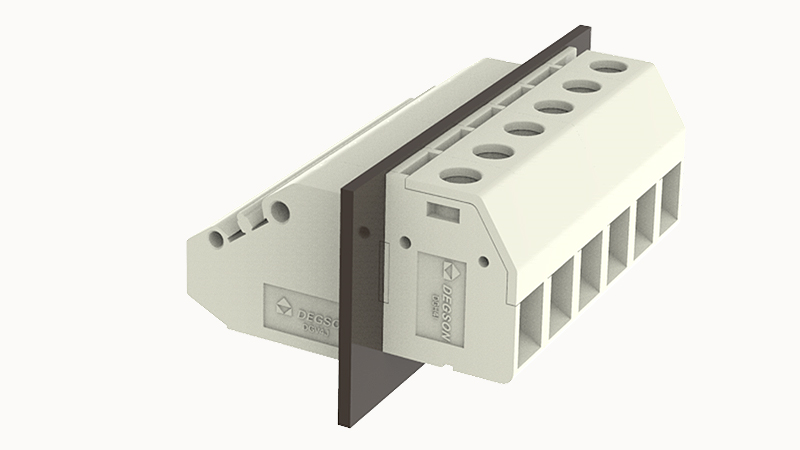

Through-wall terminal blocks,Rated current:41A.Rated voltage （III/3）:400V,Width:8.1mm,Color:gray,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGV4详情
DEGSON DGV4重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~6mm²
Conductor cross section flexible
0.2~6.0mm²
AWG
30~10AWG
Torque
0.5N.m
Strip length
9mm
Rated voltage (B)
300V
Rated voltage (D)
300V
Rated current (B)
30A
Rated current (D)
10A
Rated current(III/3)
400V
Rated surge voltage(III/3)
6KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC60947/UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
8.1mm
screw thread
M3
Connection method
Screw connection
Flammability rating
UL94V-0
