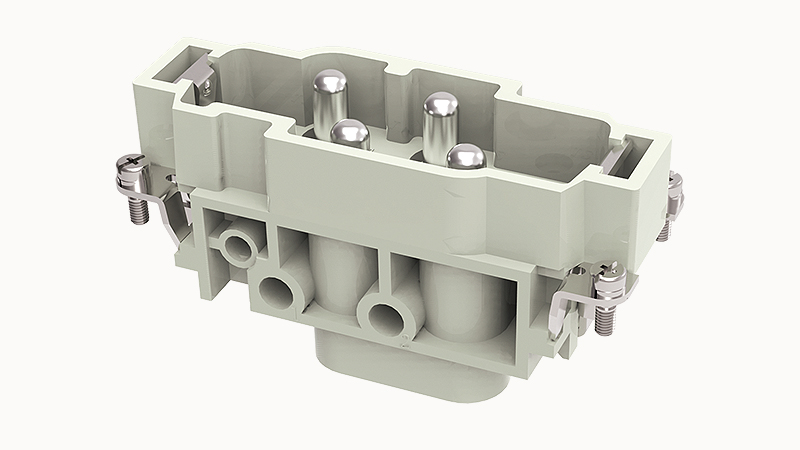

DEGSON DK-4/0-M

classification

Insert

Female/Male

Male

Dimensions

16B

PE Contacts

有

RoHS

Comply with RoHS exemptions

Rated pulse voltage

8KV

Pollution level

3

On the basis of UL /CSARated current

600V

working life-mating cycles

≥500 time

Strip length

14mm

Rated torque

1.2N.m(1.5mm²) 2N.m(2.5mm²) 3N.m(4/6/10/16mm²)

Conductor cross sections(AWG)

16-6AWG

Connection meets standards

DIN EN 60664 DIN EN 61984

系列

DK

Number of positions

4/0

color

Grey/White（RAL 7032）

Contact resistance

≤0.3mΩ

Insulation resistance

≥10000MΩ

Temperature range

-40℃~+125℃

Rated current

80A

Connection method

Screw connection

Flammability rating

V-0
