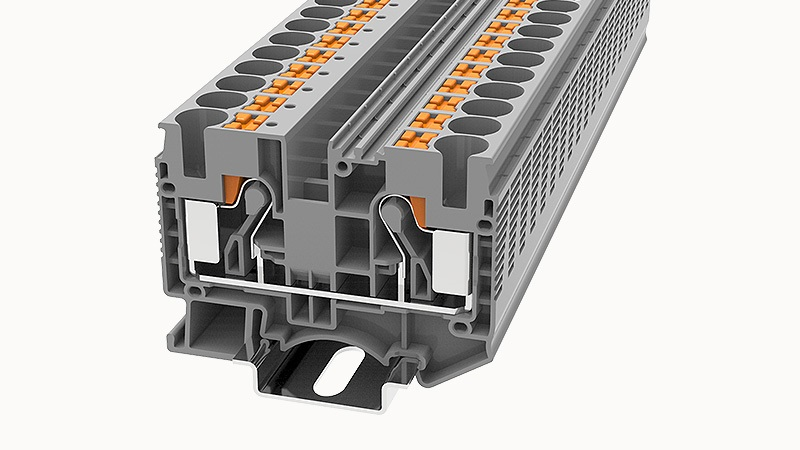

DEGSON DS10

End plate width

1.5mm

NS 35/7,5 Height

51.1mm

Temperature rise test

≤45 K

Voltage drop

≤3.2mV

RoHS

No excessive harmful substances

Rotational Pull Test

Passed the test

Fixing support

Passed the test

Mechanical strength

Passed the test

Anti-finger touch

Passed the test

Rated surge voltage

8KV

Rated current(III/3)

57A

Rated voltage (III / 3)

1000V

Relative humidity (storage/transport)

25%~75%

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Ambient temperature (storage/transportation)

-25℃~60℃

Conductor cross section solid AWG

20~6

Conductor cross section flexible

0.5~10mm²

Conductor cross section solid

0.5~16mm²

Strip length

16~18mm

2 flexible conductors with a TWIN ferrule

1.5-4mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.5-10mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.5-10mm²

NS 35/15 Height

58.6mm

Insulating material group

I

standard test

IEC60947-7-1

number of connections

2

Open-end side panels

有

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Slotted screwdriver size (Blade thickness x Width) mm

1x5.5

Number of rows

1

Rated current

60A

Rated voltage

600V

Connection type

In line connection

高度

43.6mm

length

67.7mm

width

10.2mm

REACh SVHC

Lead 7439-92-1
