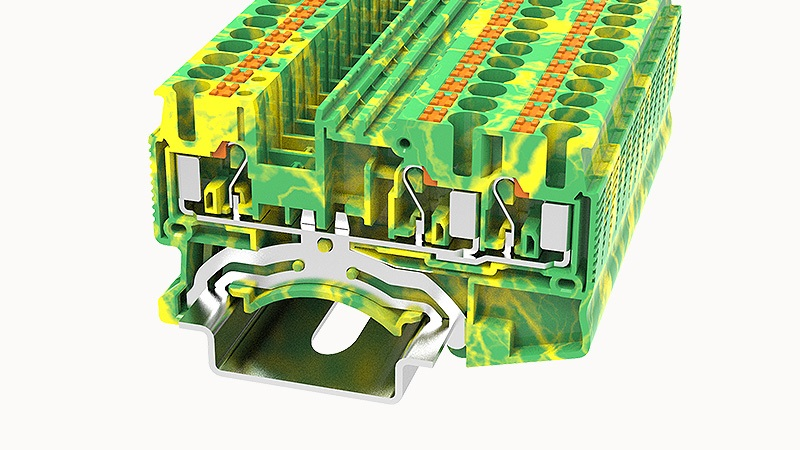

DEGSON DS2.5-TW-PE

Conductor cross section flexible (ferrule without plastic sleeve)

0.14-2.5mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.14-2.5mm²

2 flexible conductors with a TWIN ferrule

0.5mm²

Strip length

10~12mm

Conductor cross section solid

0.14~4mm²

Conductor cross section flexible

0.14~2.5 mm²

Conductor cross section solid AWG

26~12

Ambient temperature (storage/transportation)

-25℃~60℃

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Rated surge voltage

8KV

Anti-finger touch

Passed the test

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

RoHS

No excessive harmful substances

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

NS 35/7,5 Height

36.8mm

End plate width

2.2mm

NS 35/15 Height

44.3mm

Insulating material group

I

standard test

IEC60947-7-2

number of connections

3

Open-end side panels

有

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Slotted screwdriver size (Blade thickness x Width) mm

0.6x3.5

Number of rows

1

Connection type

In line connection

高度

29.3mm

length

60.5mm

width

5.2mm

REACh SVHC

Lead 7439-92-1
