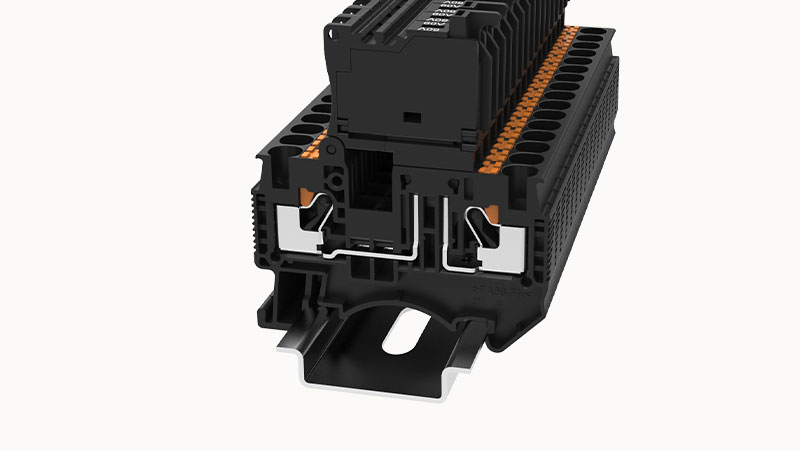

DEGSON DS4-HE-LD60
- 收藏
- 对比
DS4-HE-LD60
637-DS4-HE-LD60
端子块 - 配件
--
大陆
立即发货
Fuse terminal blocks, connector method: Push-in connector, Fuse type: G / 5 x 20, Glass/ceramic/..., Rated voltage : 60 V,Rated current : 6.3 A, Number of connectors: 2, Number of potentials: 1, Cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, Width: 6.2 mm, Color: black, Mounting type: NS35/7.5, NS35/15
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DS4-HE-LD60详情
DEGSON DS4-HE-LD60重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Rated voltage (III / 3)
60V
Conductor cross section flexible (ferrule without plastic sleeve)
0.2-4mm²
Conductor cross section flexible (ferrule with plastic sleeve)
0.2-4mm²
2 flexible conductors with a TWIN ferrule
0.5-1mm²
Strip length
11~13mm
Conductor cross section solid
0.2~6mm²
Conductor cross section flexible
0.2~4mm²
Conductor cross section solid AWG
24~10
Ambient temperature (storage/transportation)
-25℃~60℃
Ambient temperature (operation)
-40 °C ~ 105 °C（depending on derating curve）
Relative humidity (storage/transport)
25%~75%
Rated current(III/3)
6.3A
Anti-finger touch
Passed the test
Mechanical strength
Passed the test
Fixing support
Passed the test
Rotational Pull Test
Passed the test
RoHS
No excessive harmful substances
Voltage drop
≤3.2mV
Temperature rise test
≤45 K
NS 35/7,5 Height
36.8mm
End plate width
1.5mm
NS 35/15 Height
44.3mm
Insulating material group
I
standard test
IEC60947-7-3
number of connections
2
Open-end side panels
有
Insulation Materials
PA
Flame retardant grade, in line with UL94
V0
Slotted screwdriver size (Blade thickness x Width) mm
0.6x3.5
Number of rows
1
Fuse type
Glass/ceramic/...
fuse
G/5 x 20
Connection type
In line connection
高度
29.3mm
length
55.6mm
width
6.2mm
REACh SVHC
Lead 7439-92-1
