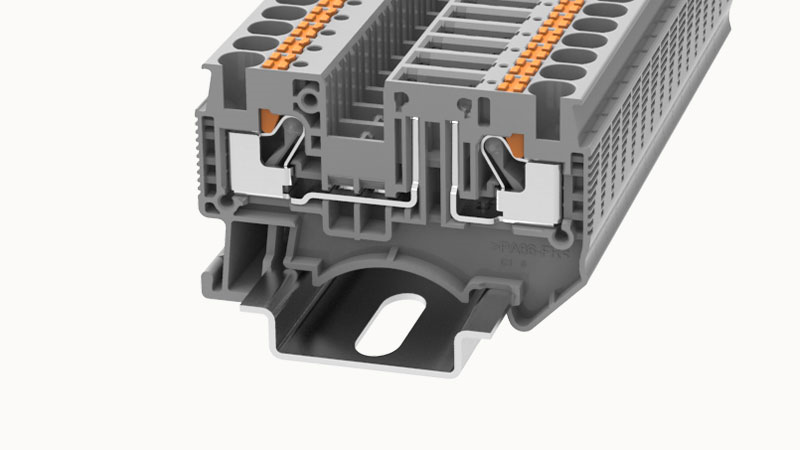

DEGSON DS4-TG

standard test

IEC60947-7-1

Insulating material group

I

NS 35/15 Height

44.3mm

End plate width

1.5mm

NS 35/7,5 Height

36.8mm

Temperature rise test

≤45 K

Voltage drop

≤3.2mV

RoHS

No excessive harmful substances

Rotational Pull Test

Passed the test

Fixing support

Passed the test

Mechanical strength

Passed the test

Anti-finger touch

Passed the test

Rated surge voltage

6KV

Rated voltage (III / 3)

500V

Relative humidity (storage/transport)

25%~75%

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Ambient temperature (storage/transportation)

-25℃~60℃

Conductor cross section solid AWG

24~10

Conductor cross section flexible

0.2~4mm²

Conductor cross section solid

0.2~6mm²

Strip length

11~13mm

2 flexible conductors with a TWIN ferrule

0.5-1mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.2-4mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.2-4mm²

Rated current(III/3)

20A

Open-end side panels

有

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

number of connections

2

Slotted screwdriver size (Blade thickness x Width) mm

0.6x3.5

Number of rows

1

Rated current

20A

Rated voltage

300V

Connection type

In line connection

width

6.2mm

length

55.6mm

高度

29.3mm

REACh SVHC

Lead 7439-92-1
