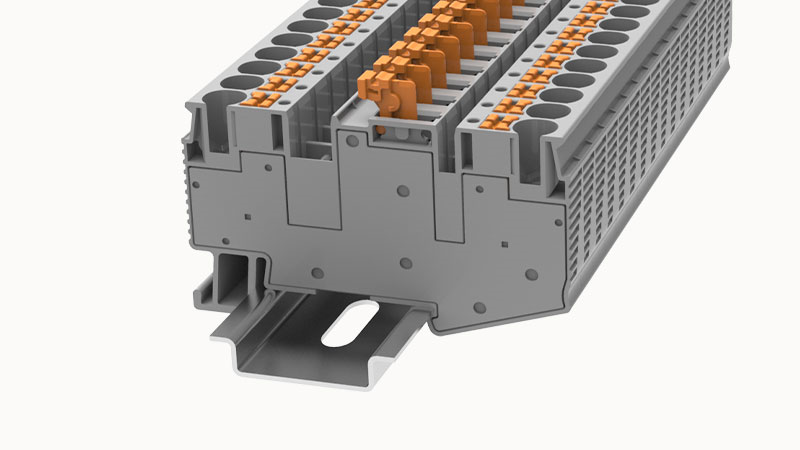

DEGSON DS6-MT

Rated current(III/3)

20A

Conductor cross section flexible (ferrule without plastic sleeve)

0.5-6mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.5-6mm²

2 flexible conductors with a TWIN ferrule

0.5-2.5mm²

Strip length

10~12mm

Conductor cross section solid

0.5~10mm²

Conductor cross section flexible

0.5~6mm²

Conductor cross section solid AWG

20~8

Ambient temperature (storage/transportation)

-25℃~60℃

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Rated voltage (III / 3)

500V

Rated surge voltage

6KV

Anti-finger touch

Passed the test

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

RoHS

No excessive harmful substances

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

NS 35/7,5 Height

43.5mm

NS 35/15 Height

51mm

Insulating material group

I

standard test

IEC60947-7-1

number of connections

2

Open-end side panels

no

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Slotted screwdriver size (Blade thickness x Width) mm

0.8x4

Number of rows

1

Rated current

20A

Rated voltage

300V

Connection type

In line connection

length

74.2mm

width

8.2mm

高度

36mm

REACh SVHC

Lead 7439-92-1
