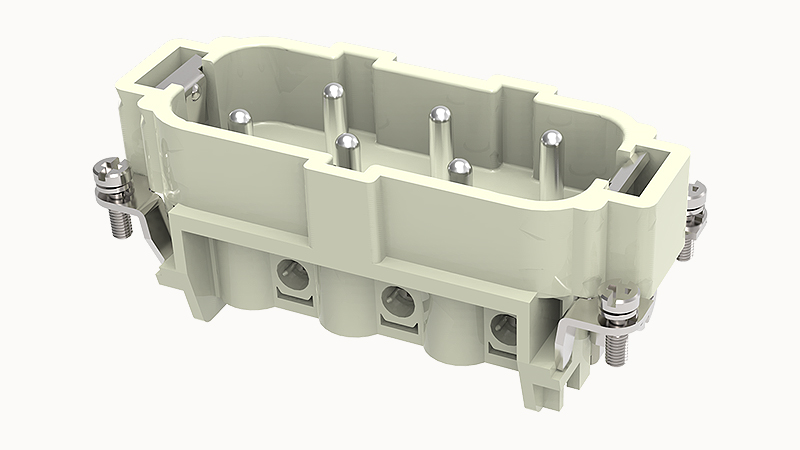

DEGSON DSB-006-M
- 收藏
- 对比
DSB-006-M
637-DSB-006-M
背板连接器 - ARINC 插件
--
大陆
立即发货
Heavy-duty insert,Number of contacts:6 PE,Dimension:16B,Rated voltage :500V,Rated current:35A,Male insert,Crimping connector
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DSB-006-M详情
DEGSON DSB-006-M重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
classification
Insert
Female/Male
Male
Dimensions
16B
PE Contacts
有
RoHS
Comply with RoHS exemptions
Rated pulse voltage
6KV
Pollution level
3
On the basis of UL /CSARated current
600V
working life-mating cycles
≥500 time
Strip length
7.5mm
Rated torque
1.2N.m
Conductor cross sections(AWG)
16-10AWG
Connection meets standards
DIN EN 60664 DIN EN 61984
系列
DSB
Number of positions
6
color
Grey/White（RAL 7032）
Contact resistance
≤1mΩ
Insulation resistance
≥10000MΩ
Temperature range
-40℃~+125℃
Rated current
35A
Connection method
Screw connection
Flammability rating
V-0
