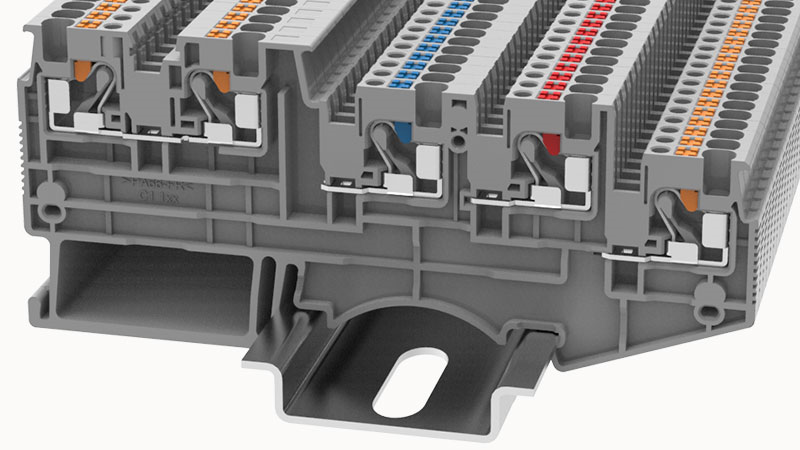

DEGSON DSIO1.5/4

Rated current(III/3)

13.5A

Conductor cross section flexible (ferrule without plastic sleeve)

0.14-1.5mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.14-0.5mm²

Strip length

8~10mm

Conductor cross section solid

0.14~1.5mm²

Conductor cross section flexible

0.14~1.5 mm²

Conductor cross section solid AWG

26~14

Ambient temperature (storage/transportation)

-25℃~60℃

Relative humidity (storage/transport)

25%~75%

Rated voltage (III / 3)

250V

Rated surge voltage

4KV

Anti-finger touch

Passed the test

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Flame retardant grade, in line with UL94

V0

Insulation Materials

PA

Open-end side panels

有

number of connections

5

standard test

IEC60947-7-1

Insulating material group

I

NS 35/15 Height

49mm

End plate width

2.2mm

NS 35/7,5 Height

41.5mm

Temperature rise test

≤45 K

Voltage drop

≤3.2mV

RoHS

No excessive harmful substances

Rotational Pull Test

Passed the test

Fixing support

Passed the test

Mechanical strength

Passed the test

Slotted screwdriver size (Blade thickness x Width) mm

0.4x2.5

Number of rows

1

Rated current

15A

Rated voltage

300V

Connection type

In line connection

高度

34mm

width

3.5mm

length

90.9mm

REACh SVHC

Lead 7439-92-1
