DEGSON ES-K-350
- 收藏
- 对比
ES-K-350
637-ES-K-350
端子块 - 配件
--
大陆
立即发货

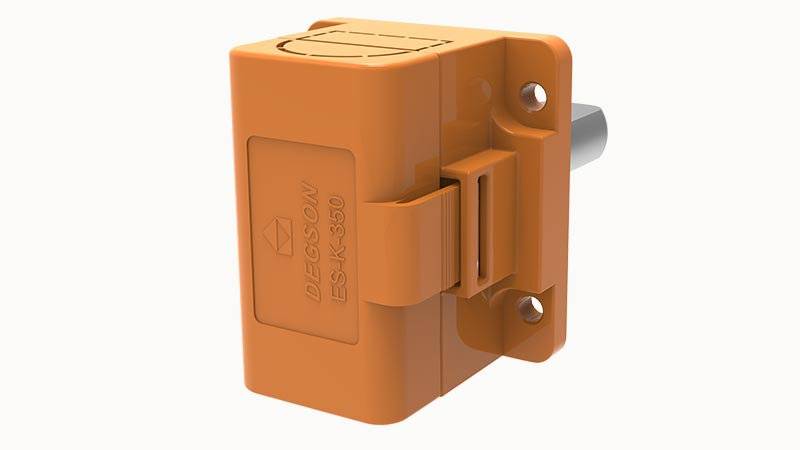

Panel feed-through connectors for energy storage systems,rated current：350A, rated voltage：1000V,max cross section: 95mm²,copper busbars：20mm*5mm,color：orange,contact surface：Ni
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
ES-K-350详情
DEGSON ES-K-350重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Cross section
95mm²
Copper busbars
20mm*5mm
AWG
3/0AWG
Screw thread(front)
M10
Screw thread(behind)
M6
Type of installation
panel
Number of potentials
1
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
Nickel plating
Contact zone metal surface
Nickel plating
Insulation Materials
PC
Test Specification
UL1059
Ambient temperature (operation)
-40℃~125℃
Rated current
350A
Connection method
Screw connection
Rated voltage
1000V
Flammability rating
UL94V-0
