DEGSON FEAC-T-032A-P4-03-0.0M
- 收藏
- 对比
FEAC-T-032A-P4-03-0.0M
637-FEAC-T-032A-P4-03-0.0M
端子板 - 针座，插头和插座
--
大陆
立即发货

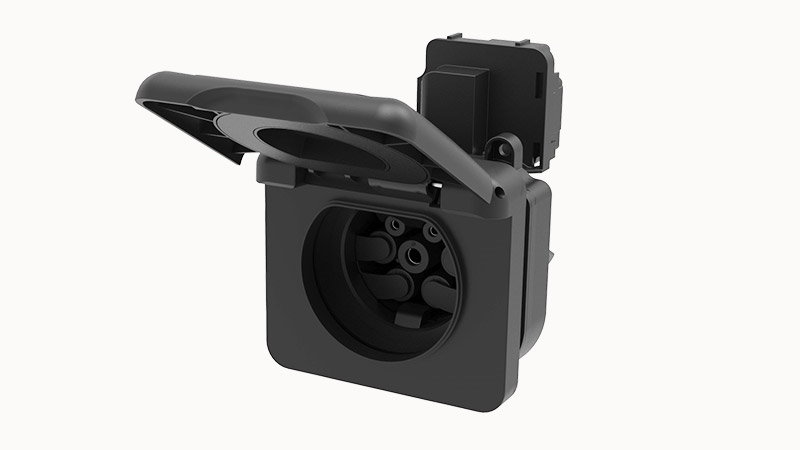

A charging socket for a charging post，cable-free, for charging electric vehicles (evs) using alternating current (AC) , Type 2, IEC 62196-2,32A/480V (AC) , enclosure: Black, DEGSON logo
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
FEAC-T-032A-P4-03-0.0M详情
DEGSON FEAC-T-032A-P4-03-0.0M重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Shell material
Plastic
Ambient temperature (operation)
－ 30 °C ~ 50 °C
Ambient temperature (storage/transportation)
－ 40 °C ~ 80 °C
Maximum altitude
5000m(Above sea level )
IP class
IP54(coupling )
Maximum charge power
26KW
Power pin quantity
5
Rated current of high-power contacts
32
Power contact rated voltage
480
Quantity of signal contacts
2
Signal contact rated current
2
Signal contact rated voltage
30
Signal transmission type
Pulse width adjustment
Insert / pull out cycle
10000
Pullout force
< 100N
Shell color
black
Actuation component color
Silver
Cover color
black
Customization basis
Provided according to customer requirements
Protective cover material
Plastic
Contact surface material
Ag
REACH
conform
China RoHS
conform
Insertion force
< 100N
相位
3
Flammability rating
V0
