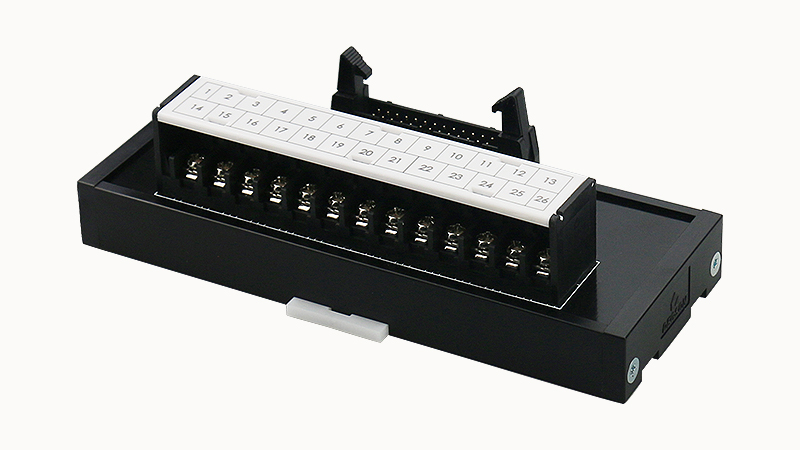

DEGSON Interface moduleDM50-IDC-26-26-4G-00A(H)

Ambient temperature (operation)

-20 °C ... 70 °C

Ambient temperature (storage/transportation)

-20 °C ... 70 °C

Standards/Regulations

IEC61810

Pollution level

3

Overvoltage category

Ⅲ

Rated overvoltage

0.5kV

Flame retardant grade, in line with UL94

V0

Installation location

Arbitrary

Maximum allowable working voltage

30VDC

Maximum allowable current

1A

Signal points

26

Status Display

no

Connection name

Control system side

Connection volume

1

Number of digits

26

spacing

2.54mm

Cross section of flexible conductor

0.3mm²--2.0mm²

Connectable guide cross section AWG

22-14AWG

Connection meets standards

UL1059

Hard wire cross section

0.3mm²--2.0mm²

Wire harness

DX210-7S-500-00A(H)

Packing unit

2

Products weight (without packaging)

140

screw thread

M3

Stripping length

6-7mm

Connection method

IDC connection

width

57mm

高度

44mm

length

143mm
