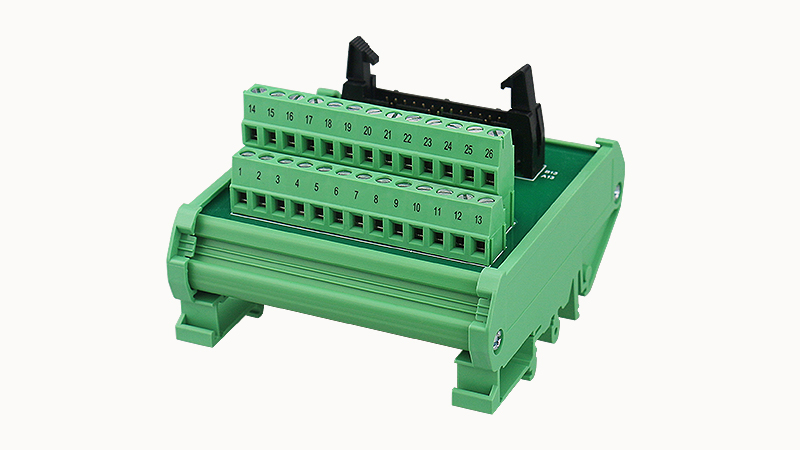

DEGSON Interface module-DM72-IDC-26-26-4Y-00A(H)

Ambient temperature (operation)

-20 °C ... 50 °C

Ambient temperature (storage/transportation)

-20 °C ... 50 °C

Standards/Regulations

IEC61810

Pollution level

3

Overvoltage category

Ⅲ

Rated overvoltage

0.5kV

Flame retardant grade, in line with UL94

V0

Installation location

Arbitrary

Maximum allowable working voltage

30VDC

Maximum allowable current

1A

Signal points

26

Status Display

no

Connection name

Control system side

Connection volume

1

Number of digits

26

spacing

2.54mm

Cross section of flexible conductor

1.0 mm² ... 2.5 mm²

Connectable guide cross section AWG

28-12AWG

Connection meets standards

UL1059

Hard wire cross section

1.0 mm² ... 2.5 mm²

Wire harness

DX210-7S-500-00A(H)

Packing unit

2

Products weight (without packaging)

160

screw thread

M3

Stripping length

6-7mm

Connection method

IDC connection

width

90mm

高度

62mm

length

45.5mm
