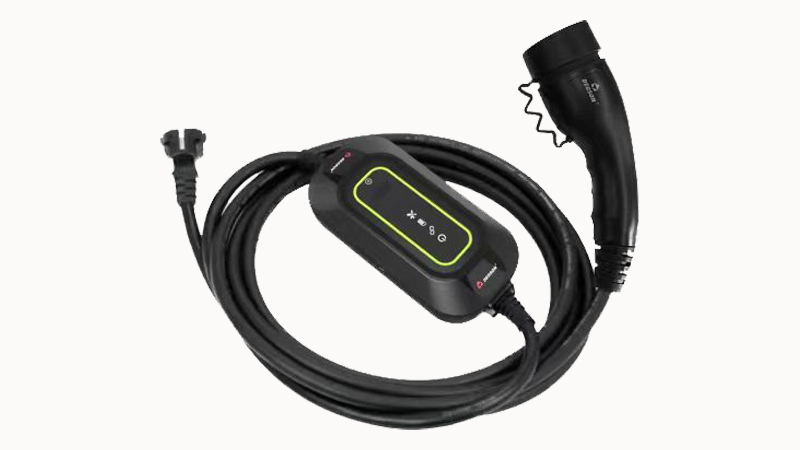

DEGSON MEAC-S-016A-VB-03-5.0M-00A(H)

Shell material

Plastic

Vehicle connector height

79mm(Vehicle charging connector)

Vehicle connector depth

222.3mm(Vehicle charging connector)

Strip length

100±10mm

Ambient temperature (operation)

－ 30 °C ~ 50 °C

Ambient temperature (storage/transportation)

－ 40 °C ~ 80 °C

Maximum altitude

5000m(Above sea level )

IP class

IP54（protection cover）

Maximum charge power

3.5KW

Power pin quantity

3

Rated current of high-power contacts

16

Power contact rated voltage

250

Quantity of signal contacts

2

Signal contact rated current

2

Signal contact rated voltage

30

Resistance coding

680Ω

Signal transmission type

Pulse width adjustment

Insert / pull out cycle

10000

Pullout force

< 100N

Actuation component color

Silver

Cover color

black

Customization basis

Provided according to customer requirements

Handle material area

Plastic

Protective cover material

Soft plastic

Contact surface material

Ag

Wiring standard

EN50620

Wiring level

5 class

Cable outer diameter

10.5±0.5mm

Cable resistance

≤ 0.00798 Ω/m (Based on the power core, at an ambient temperature of 20°C)

Outer sheath,color

black

Outer sheath, material

PUR

Environmental items

Compliant with REACH/RoHS

Shell color

black

UL可燃性规范

V0

Cable length

5000±50mm

Wire type

Straight line

Insertion force

< 100N

证明书

CE

Minimum bend radius

63mm

相位

1

width

70mm
