DEGSON MEAC-S-032A-VB-03-5.0M-00A(H)

Name: MEAC-S-032A-VB-03-5.0M-00A(H)
Brand: DEGSON
SKU: 637-MEAC-S-032A-VB-03-5.0M-00A(H)
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

MEAC-S-032A-VB-03-5.0M-00A(H)

品牌

DEGSON

utmel 编号

637-MEAC-S-032A-VB-03-5.0M-00A(H)

商品类别

端子板 - 针座，插头和插座

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

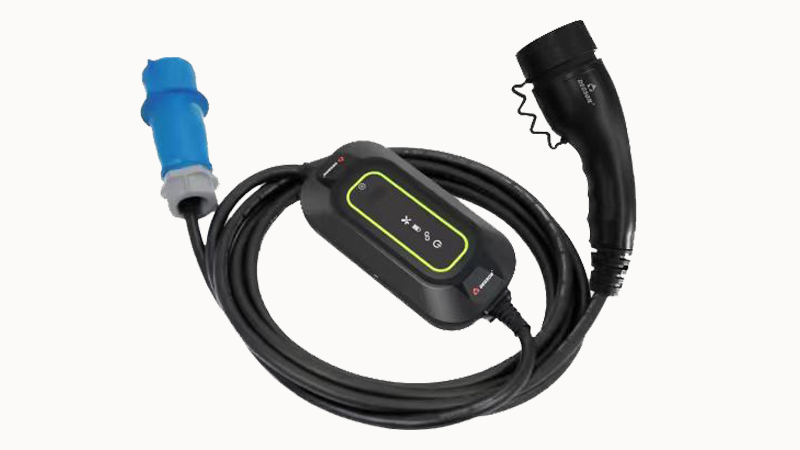

Mobile AC charging cable with vehicle charging connector and on-cable control box (ICCB/IC-CPD) for charging electric vehicles (EVs) with alternating current (AC) via European standard vehicle charging outlet, with protective cover, PVC cable between home plug and IC-CPD, housing: Black, DEGSON electrical logo, cable: 5 m, black, straight head

起订量

1最小包装量--

添加到询价列表

MEAC-S-032A-VB-03-5.0M-00A(H) DEGSON Mobile AC charging cable with vehicle charging connector and on-cable control box (ICCB/IC-CPD) for charging electric vehicles (EVs) with alternating current (AC) via European standard vehicle charging outlet, with protective cover, PVC cable between home plug and IC-CPD, housing: Black, DEGSON electrical logo, cable: 5 m, black, straight head

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

MEAC-S-032A-VB-03-5.0M-00A(H)详情

技术参数

PDF文档

DEGSON MEAC-S-032A-VB-03-5.0M-00A(H)重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Shell material

Plastic
Vehicle connector height

79mm(Vehicle charging connector)
Vehicle connector depth

222.3mm(Vehicle charging connector)
Strip length

100±10mm
Ambient temperature (operation)

－ 30 °C ~ 50 °C
Ambient temperature (storage/transportation)

－ 40 °C ~ 80 °C
Maximum altitude

5000m(Above sea level )
IP class

IP54（protection cover）
Maximum charge power

7KW
Power pin quantity

3
Rated current of high-power contacts

32
Power contact rated voltage

250
Quantity of signal contacts

2
Signal contact rated current

2
Signal contact rated voltage

30
Resistance coding

220Ω
Signal transmission type

Pulse width adjustment
Insert / pull out cycle

10000
Pullout force

< 100N
Actuation component color

Silver
Cover color

black
Customization basis

Provided according to customer requirements
Handle material area

Plastic
Protective cover material

Soft plastic
Contact surface material

Ag
Cable composition

3*6mm²+1*0.75mm²
Wiring standard

EN50620
Wiring level

5 class
Cable outer diameter

13±0.5mm
Cable resistance

≤ 0.0033 Ω/m (Based on the power core, at an ambient temperature of 20°C)
Outer sheath,color

black
Outer sheath, material

PUR
Environmental items

Compliant with REACH/RoHS
Shell color

black
Cable length

5000±50mm
Wire type

Straight line
Insertion force

< 100N
证明书

CE
Minimum bend radius

78mm
相位

1
width

70mm
Flammability rating

V0
