DEGSON MEAC-T-032A-V1P1-5.0M

Name: MEAC-T-032A-V1P1-5.0M
Brand: DEGSON
SKU: 637-MEAC-T-032A-V1P1-5.0M
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

MEAC-T-032A-V1P1-5.0M

品牌

DEGSON

utmel 编号

637-MEAC-T-032A-V1P1-5.0M

商品类别

端子板 - 针座，插头和插座

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

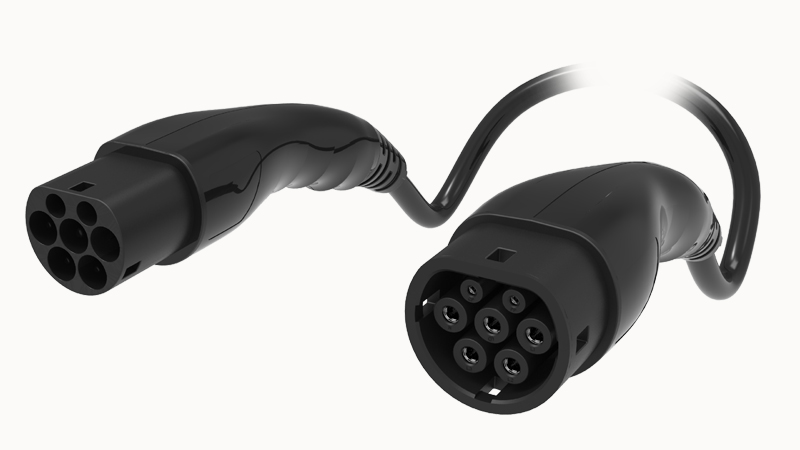

Mobile AC charging cable with vehicle charging plug and charging post plug for charging electric vehicles (EVs) with alternating current (AC) via type 2 vehicle socket, compatible with electric vehicle charging stations (EVSE) Type 2 charging post socket outlet at the EVSE is compatible

起订量

1最小包装量--

添加到询价列表

MEAC-T-032A-V1P1-5.0M DEGSON Mobile AC charging cable with vehicle charging plug and charging post plug for charging electric vehicles (EVs) with alternating current (AC) via type 2 vehicle socket, compatible with electric vehicle charging stations (EVSE) Type 2 charging post socket outlet at the EVSE is compatible

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

MEAC-T-032A-V1P1-5.0M详情

技术参数

PDF文档

DEGSON MEAC-T-032A-V1P1-5.0M重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Wiring standard

EN50620
Wiring level

5 class
Cable outer diameter

16.2±0.5mm
Cable resistance

≤ 0.0033 Ω/m (Based on the power core, at an ambient temperature of 20°C)
Outer sheath,color

black
Outer sheath, material

PUR
Vehicle connector height

79mm(Vehicle charging connector)
Vehicle connector depth

222.3mm(Vehicle charging connector)
Strip length

100±10mm
Cable composition

5*6mm²+1*0.75mm²
China RoHS

conform
Contact surface material

Ag
Protective cover material

Soft plastic
Handle material area

Plastic
Customization basis

Provided according to customer requirements
Cover color

black
EV charger color

black
Shell color

black
Pullout force

< 100N
Temperature measurement

PT1000
Resistance coding

220Ω
Signal contact rated voltage

24
Signal contact rated current

2
Quantity of signal contacts

2
Power contact rated voltage

440
Rated current of high-power contacts

32
Power pin quantity

3
Maximum charge power

24KW
IP class

IP54（protection cover）
Ambient temperature (operation)

－ 30 °C ~ 50 °C
Maximum altitude

5000m(Above sea level )
Cable length

5000±50mm
Wire type

Straight line
Insertion force

< 100N
证明书

CE
Minimum bend radius

97.2 mm
相位

3
width

70mm
Flammability rating

V0
