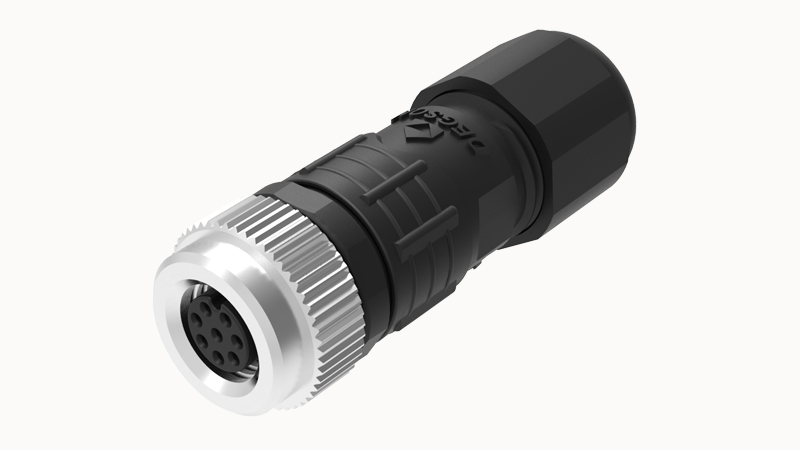

DEGSON PA-M8A-03P-FF-SL7001

Assembled conductor cross section

0.25~0.34 mm²

Assembled cable outer diameter

4.0-6.0mm

Standards/specifications

IEC 61076-2-104

Sealing material

Silicon

Coil material

Copper alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Torque

0.3 Nm ... 0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

3

IP class

IP67

Ambient temperature

-40℃...85℃

Insulation resistance

≥100MΩ

Rated current

3A

Connection method

Soldering
