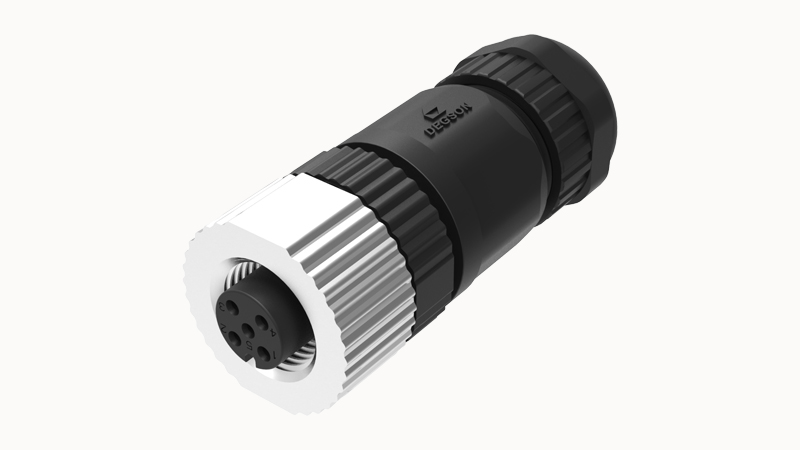

DEGSON PB-M12A-03P-FF-SL7001

Ambient temperature

-40℃...105℃

IP class

IP67

Number of potentials

3

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Assembled cable outer diameter

4.0-8.0mm

Assembled conductor cross section

0.25~0.52 mm²

Insulation resistance

≥ 100 MΩ

Rated current

4A

Connection method

Screw connection
