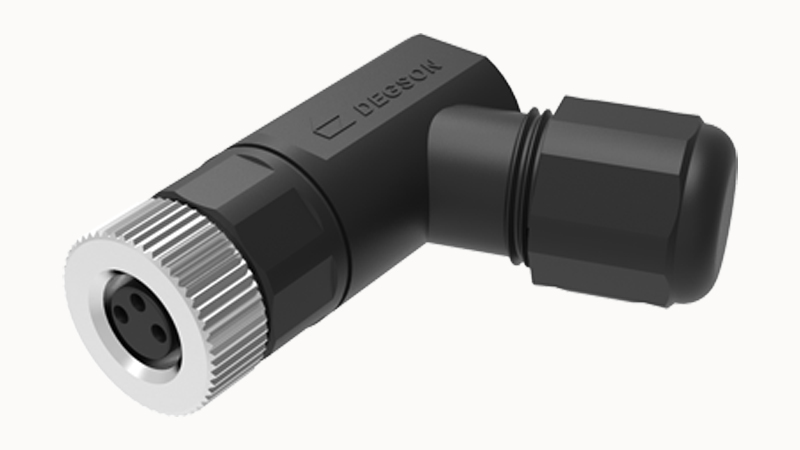

DEGSON PB-M8A-03P-FF-SR7001

Assembled cable outer diameter

4.0-6.0mm

Assembled conductor cross section

0.25~0.34 mm²;24~22 AWG

Pollution level

3

Ambient temperature

-40℃...85℃

IP class

IP67

Number of potentials

3

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Insertion and pullout cycle

≥ 100

Torque

0.3 Nm ... 0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-104

Packing unit

100

Products weight (without packaging)

/

Insulation resistance

≥ 100 MΩ

Rated current

3A;60V

Connection method

Screw connection
