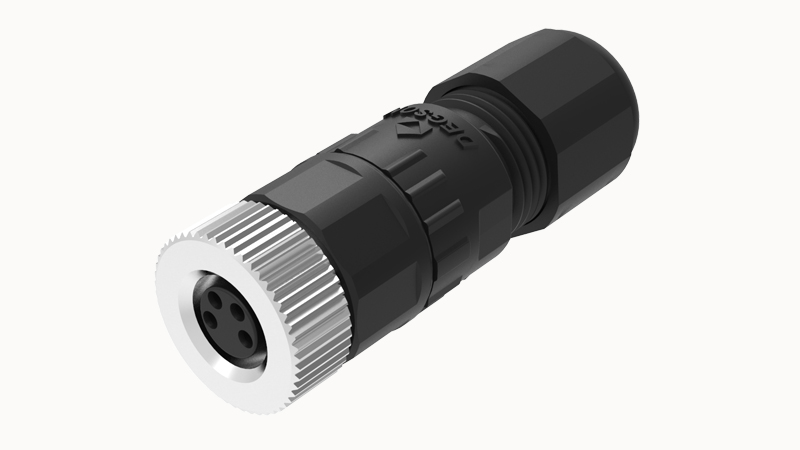

DEGSON PB-M8A-04P-FF-SL7001

Ambient temperature

-40℃...85℃

IP class

IP67

Number of potentials

4

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.3 Nm ... 0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Sealing material

Silicon

Standards/specifications

IEC 61076-2-104

Assembled cable outer diameter

4.0-6.0mm

Assembled conductor cross section

0.25~0.34 mm²

Insulation resistance

≥ 100 MΩ

Rated current

3A

Connection method

Screw connection
