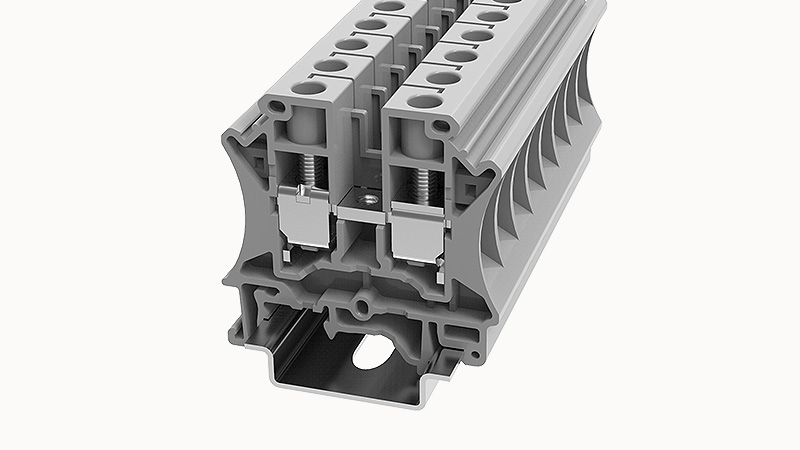

DEGSON PC10-105A(H)
- 收藏
- 对比
PC10-105A(H)
637-PC10-105A(H)
端子块 - 配件
--
大陆
立即发货
Screw type Din-Rail TB, connector method: Screw/plug-in connector, Rated voltage: 1000 V,Rated current: 57 A, Number of connectors: 2, Number of potentials: 1, Cross section: 0.2 mm² - 10 mm², AWG: 20 - 6, Width: 10.2 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
PC10-105A(H)详情
DEGSON PC10-105A(H)重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
number of connections
2
Open-end side panels
有
Insulation Materials
PA
Flame retardant grade, in line with UL94
V0
Insulating material group
I
standard test
IEC60947-7-1
End plate width
2.2mm
NS 35/7,5 Height
48.5mm
NS 35/15 Height
56mm
Strip length
9~10mm
Conductor cross section solid AWG
20~6
Conductor cross section solid
0.2~10mm²
Conductor cross section flexible
0.2~10mm²
Screw type
Slotted screw
Tightening torque
1.2N.m
Rated voltage (III / 3)
1000V
Rated current(III/3)
57A
Rated surge voltage
8KV
Ambient temperature (operation)
-40 °C ~ 105 °C（depending on derating curve）
Relative humidity (storage/transport)
25%~75%
Ambient temperature (storage/transportation)
-25℃~60℃
Mechanical strength
Passed the test
Fixing support
Passed the test
Rotational Pull Test
Passed the test
Voltage drop
≤3.2mV
Temperature rise test
≤45 K
Anti-finger touch
Passed the test
RoHS
No excessive harmful substances
Number of rows
1
Rated current
65A
screw thread
M4
Connection method
screw connection
Rated voltage
600V
width
10.2mm
高度
47.25mm
length
48mm
REACh SVHC
Lead 7439-92-1
