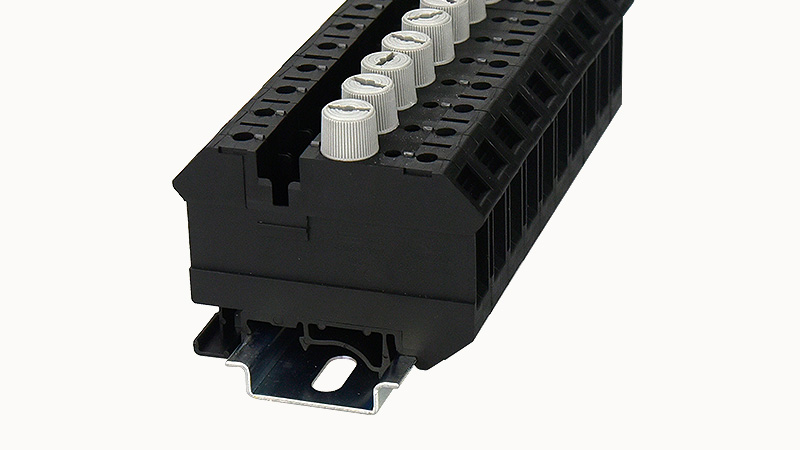

DEGSON PC10-DR

number of connections

2

Open-end side panels

no

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

standard test

IEC60947-7-3

NS 35/7,5 Height

57.25mm

NS 35/15 Height

64.75mm

Strip length

10~11mm

Conductor cross section solid AWG

24~6

Conductor cross section solid

0.5~10mm²

Conductor cross section flexible

0.5~10mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.5-10mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.5-10mm²

Screw type

Slotted screw

Tightening torque

1.2N.m

Rated voltage (III / 3)

800V

Rated current(III/3)

10A

Rated surge voltage

8KV

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

Anti-finger touch

Passed the test

RoHS

No excessive harmful substances

Number of rows

1

Fuse type

Glass/ceramic/...

Rated current

10A

screw thread

M4

Connection method

screw connection

Rated voltage

600V

fuse

G/5 x 20

width

12mm

高度

56mm

length

62.4mm

REACh SVHC

Lead 7439-92-1
