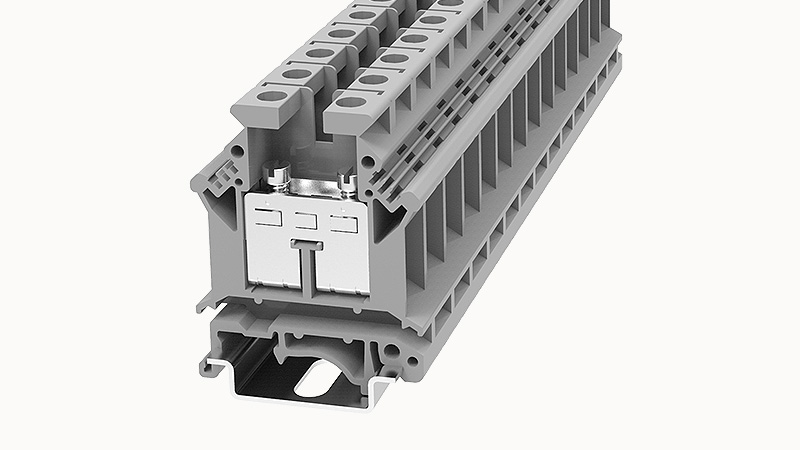

DEGSON PC16
- 收藏
- 对比
PC16
637-PC16
端子块 - 配件
--
大陆
立即发货
Screw type Din-Rail TB, connector method: Screw/plug-in connector, Rated voltage: 800 V, Rated current: 76 A, Number of connectors: 2, Number of potentials: 1, Cross section: 0.2 mm² - 16 mm², AWG: 12 - 4, Width: 12.2 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
PC16详情
DEGSON PC16重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
number of connections
2
Open-end side panels
有
Insulation Materials
PA
Flame retardant grade, in line with UL94
V0
Insulating material group
I
standard test
IEC60947-7-1
End plate width
1.5mm
NS 35/7,5 Height
54.05mm
NS 35/15 Height
61.55mm
Strip length
11~12mm
Conductor cross section solid AWG
12~4
Conductor cross section solid
0.2~16mm²
Conductor cross section flexible
0.2~16mm²
Conductor cross section flexible (ferrule with plastic sleeve)
0.2-16mm²
Screw type
Slotted screw
Tightening torque
1.2N.m
Rated voltage (III / 3)
800V
Rated current(III/3)
76A
Rated surge voltage
8KV
Ambient temperature (operation)
-40 °C ~ 105 °C（depending on derating curve）
Relative humidity (storage/transport)
25%~75%
Ambient temperature (storage/transportation)
-25℃~60℃
Mechanical strength
Passed the test
Fixing support
Passed the test
Rotational Pull Test
Passed the test
Voltage drop
≤3.2mV
Temperature rise test
≤45 K
Anti-finger touch
Passed the test
RoHS
No excessive harmful substances
Number of rows
1
Rated current
85A
screw thread
M4
Connection method
screw connection
Rated voltage
600V
width
12.2mm
高度
52.8mm
length
42.5mm
REACh SVHC
Lead 7439-92-1
