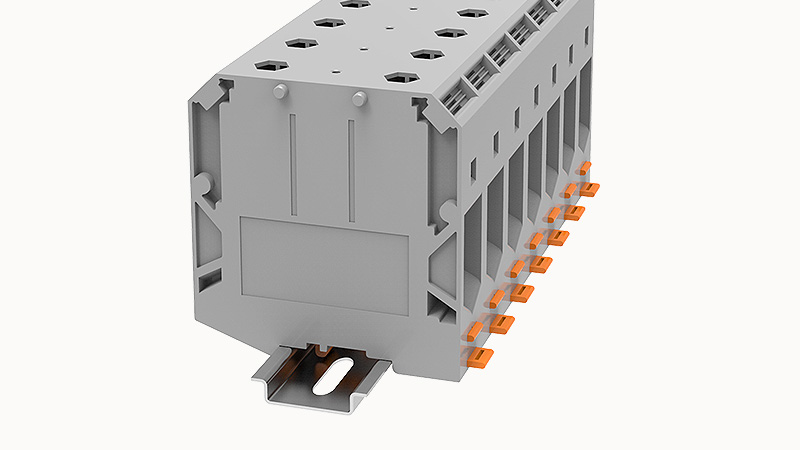

DEGSON PC95

number of connections

2

Open-end side panels

no

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

standard test

IEC60947-7-1

NS 35/7,5 Height

90.04mm

NS 35/15 Height

97.54mm

Conductor cross section solid AWG

2~4/0

Conductor cross section solid

25~95mm²

Conductor cross section flexible

25~95mm²

Conductor cross section flexible (ferrule without plastic sleeve)

25-95mm²

Conductor cross section flexible (ferrule with plastic sleeve)

25-95mm²

2 flexible conductors with a TWIN ferrule

25-35mm²

Strip length

31-33mm

Screw type

Allen screws

Tightening torque

25N.m

Rated voltage (III / 3)

1000V

Rated current(III/3)

232A

Rated surge voltage

8KV

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

Anti-finger touch

Passed the test

RoHS

No excessive harmful substances

Number of rows

1

Rated current

230A

screw thread

M8

Connection method

screw connection

Rated voltage

600V

width

25mm

高度

90mm

length

83mm

REACh SVHC

Lead 7439-92-1
