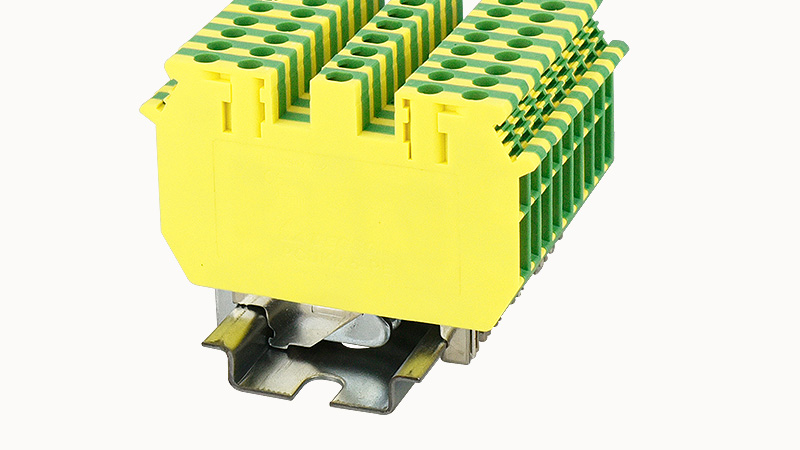

DEGSON PCDK2.5-PE
- 收藏
- 对比
PCDK2.5-PE
637-PCDK2.5-PE
端子块 - 配件
--
大陆
立即发货
Screw type Din-Rail TB, connector method: Screw/plug-in connector, Number of connectors: 3, Number of potentials: 1, Cross section: 0.2 mm² - 2.5 mm², AWG: 28 - 12, Width: 5.2 mm, Color: green-yellow, Mounting type: NS 35/7.5, NS 35/15
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
PCDK2.5-PE详情
DEGSON PCDK2.5-PE重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
number of connections
4
Open-end side panels
no
Insulation Materials
PA
Flame retardant grade, in line with UL94
V0
Insulating material group
I
standard test
IEC60947-7-2
NS 35/7,5 Height
47.2mm
NS 35/15 Height
54.7mm
Strip length
7~8mm
Conductor cross section solid AWG
28~12
Conductor cross section solid
0.2~2.5mm²
Conductor cross section flexible
0.2~2.5mm²
Conductor cross section flexible (ferrule without plastic sleeve)
0.2-2.5mm²
2 flexible conductors with a TWIN ferrule
0.5-0.75mm²
Screw type
Slotted screw
Tightening torque
0.5N.m
Rated surge voltage
6KV
Ambient temperature (operation)
-40 °C ~ 105 °C（depending on derating curve）
Relative humidity (storage/transport)
25%~75%
Ambient temperature (storage/transportation)
-25℃~60℃
Mechanical strength
Passed the test
Fixing support
Passed the test
Rotational Pull Test
Passed the test
Voltage drop
≤3.2mV
Temperature rise test
≤45 K
Anti-finger touch
Passed the test
RoHS
No excessive harmful substances
Number of rows
1
screw thread
M3
Connection method
screw connection
width
5.2mm
高度
45.8mm
length
63.5mm
REACh SVHC
Lead 7439-92-1
