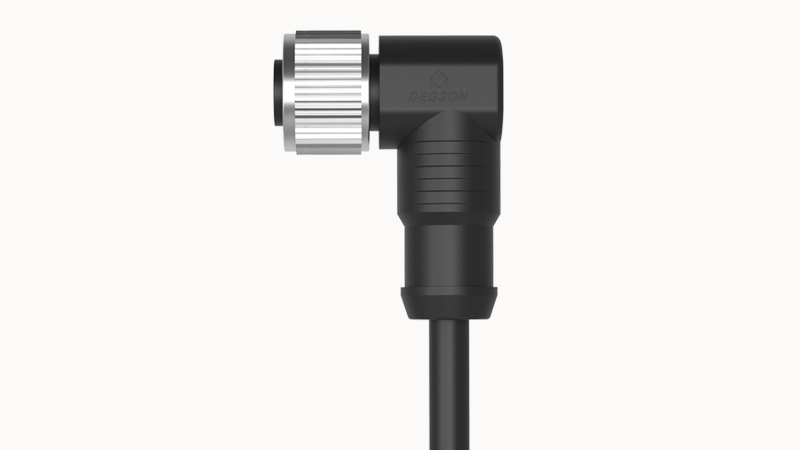

DEGSON PM-M12A-06P-FF-SR8D01

Conductor material

Tinned copper

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Wire color

1 White 2 Brown 3 Green 4 Yellow 6 Pink 7 Blue

Core diameter (including insulation layer)

1.10±0.05mm

Wire structure Signal wire

7/0.20mm²

AWG signal wire

24AWG

Cross section

0.25mm²

UL AWM form

UL20549

Cable type(abbreviation)

PUR

Cable Types

PUR Black

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Fixture body material

TPU

Flammability rating ,in line with UL94

V0

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

6

IP class

IP68

Ambient temperature

-25℃...80℃

Thickness, insulation

0.6mm

Cable outer diameter D

5.2 ±0.2mm

Outer sheath, material

PU

Conductor insulation material

PE

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Flame retardant

Comply with UL 758/1581 FT2 standard

Oil resistance

无

Insulation resistance

≥100MΩ

Cable length

1m

Rated current

2A
