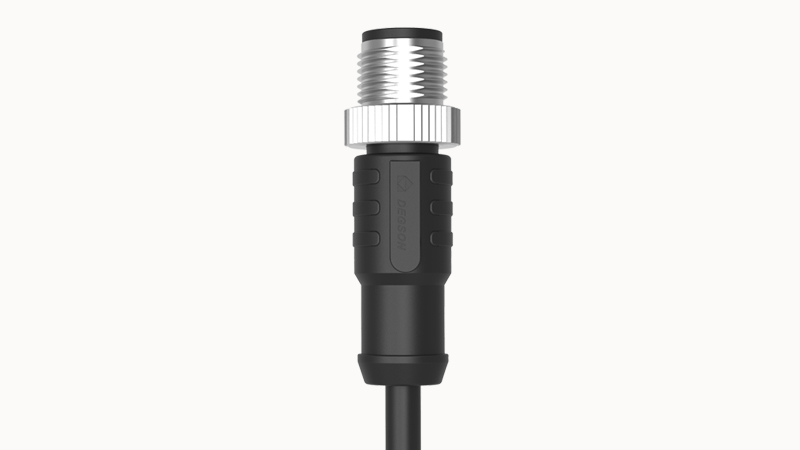

DEGSON PM-M12A-10P-MM-SL8A01

Conductor material

Tinned copper

Material of contact surface

Au

Contact carrier material

PU

Fixture body material

TPU

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Cable Types

PVC Black

Cable type(abbreviation)

PVC

UL AWM form

UL2517

Cross section

0.14mm²

AWG signal wire

26AWG

Wire structure Signal wire

7/0.16mm²

Core diameter (including insulation layer)

1.00±0.05mm

Wire color

1 Brown 2 Blue 3 White 4 Green 5 Pink 6 Yellow 7 Black 8 Gray 9 Red 10 Violet

Thickness, insulation

0.6mm

Contact Materials

CuZn

Flammability rating ,in line with UL97

HB

Flammability rating ,in line with UL94

V0

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

10

IP class

IP68

Ambient temperature

-25℃...85℃

Flame retardant

Comply with UL 758/1581 FT1 standard

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 150Ω/km (at 20 °C) )

Conductor insulation material

PVC

Outer sheath, material

PVC

Cable outer diameter D

6.0 ±0.2mm

Insulation resistance

≥100MΩ

Cable length

1m

Halogen free

有

Rated current

1.5A
