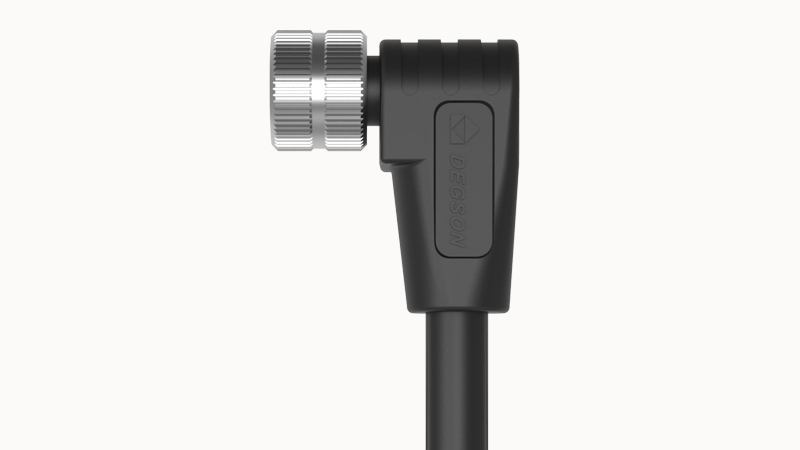

DEGSON PM-M8A-03P-FF-SR7A01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP67

Number of potentials

3

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PU

Fixture body material

TPU

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Other protection functions

Anti-UV

Flame retardant

Compliant with UL758

Special attributes

Silicone-free

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Conductor insulation material

PVC

Outer sheath, material

PVC

Bending radius

50.8mm

Minimum bend radius ,mobile installation

10*OD

Minimum bend radius ,fixed installation

5*OD

Cable outer diameter D

4.4 ±0.2mm

Thickness, insulation

0.23mm

Wire color

1 Brown 3 Blue 4 Black

Core diameter (including insulation layer)

1.00±0.05mm

Wire structure Signal wire

7/0.20mm²

AWG signal wire

24AWG

Cross section

0.25mm²

UL AWM form

UL2517

Cable type(abbreviation)

PVC

Cable Types

PVC Black

Standards/specifications

IEC 61076-2-104

Insulation resistance

≥ 20 MΩ

Cable length

1m

Halogen free

有

Rated current

3A
