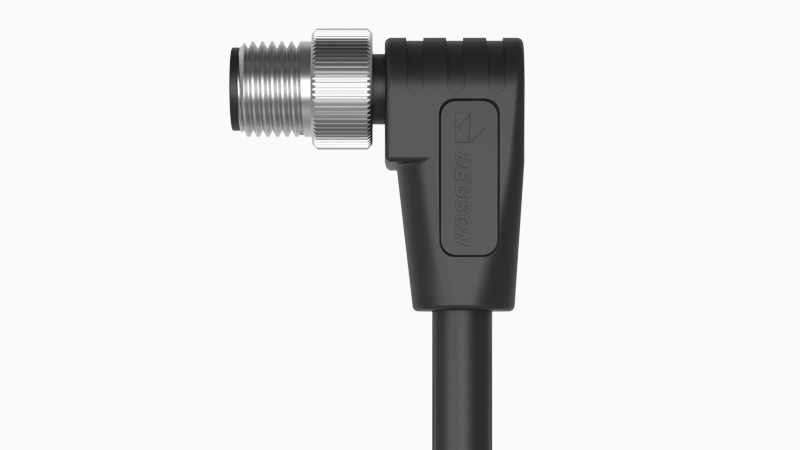

DEGSON PM-M8A-04P-MM-SR7C01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP67

Number of potentials

4

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Thickness, insulation

0.23mm

Cable outer diameter D

4.6 ±0.2mm

Minimum bend radius ,fixed installation

5*OD

Minimum bend radius ,mobile installation

10*OD

Bending radius

50.8mm

Outer sheath, material

PVC

Conductor insulation material

PVC

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Special attributes

Silicone-free

Flame retardant

Compliant with UL758

Other protection functions

Anti-UV

Wire color

1 Brown 2 White 3 Blue 4 Black

Core diameter (including insulation layer)

1.00±0.05mm

Wire structure Signal wire

7/0.20mm²

AWG signal wire

24AWG

Cross section

0.25mm²

UL AWM form

UL2517

Cable type(abbreviation)

PVC

Cable Types

PVC Black

Standards/specifications

IEC 61076-2-104

Sealing material

Silicon

Coil material

Copper alloy, nickel plated

Fixture body material

TPU

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Insulation resistance

≥ 20 MΩ

Cable length

1m

Halogen free

有

Rated current

3A
